A high-quality car audio system isn’t just about amplifiers, subwoofers, and speakers—it’s also about proper wiring. Many audio enthusiasts make critical wiring mistakes that lead to poor sound quality, electrical shorts, and even system failures. Avoiding these errors will help you get the best performance out of your system while ensuring safety and longevity.
In this guide, we’ll break down some of the most common car audio wiring mistakes and how to prevent them for a flawless setup.
1. Using Undersized Wire
The Mistake:
One of the biggest mistakes is using a wire gauge that’s too small for the amount of power being drawn. Undersized wiring causes voltage drops, overheating, and reduced performance in your audio system.
The Fix:
Choose the correct gauge wire based on your amplifier’s power requirements and the length of the wire run. Here’s a general guide:
- 0 AWG - 4 AWG: High-power amplifiers (1000W+)
- 8 AWG - 10 AWG: Medium-power amplifiers (500W - 1000W)
- 12 AWG - 16 AWG: Speakers and subwoofers
- 18 AWG - 22 AWG: Low-power accessories

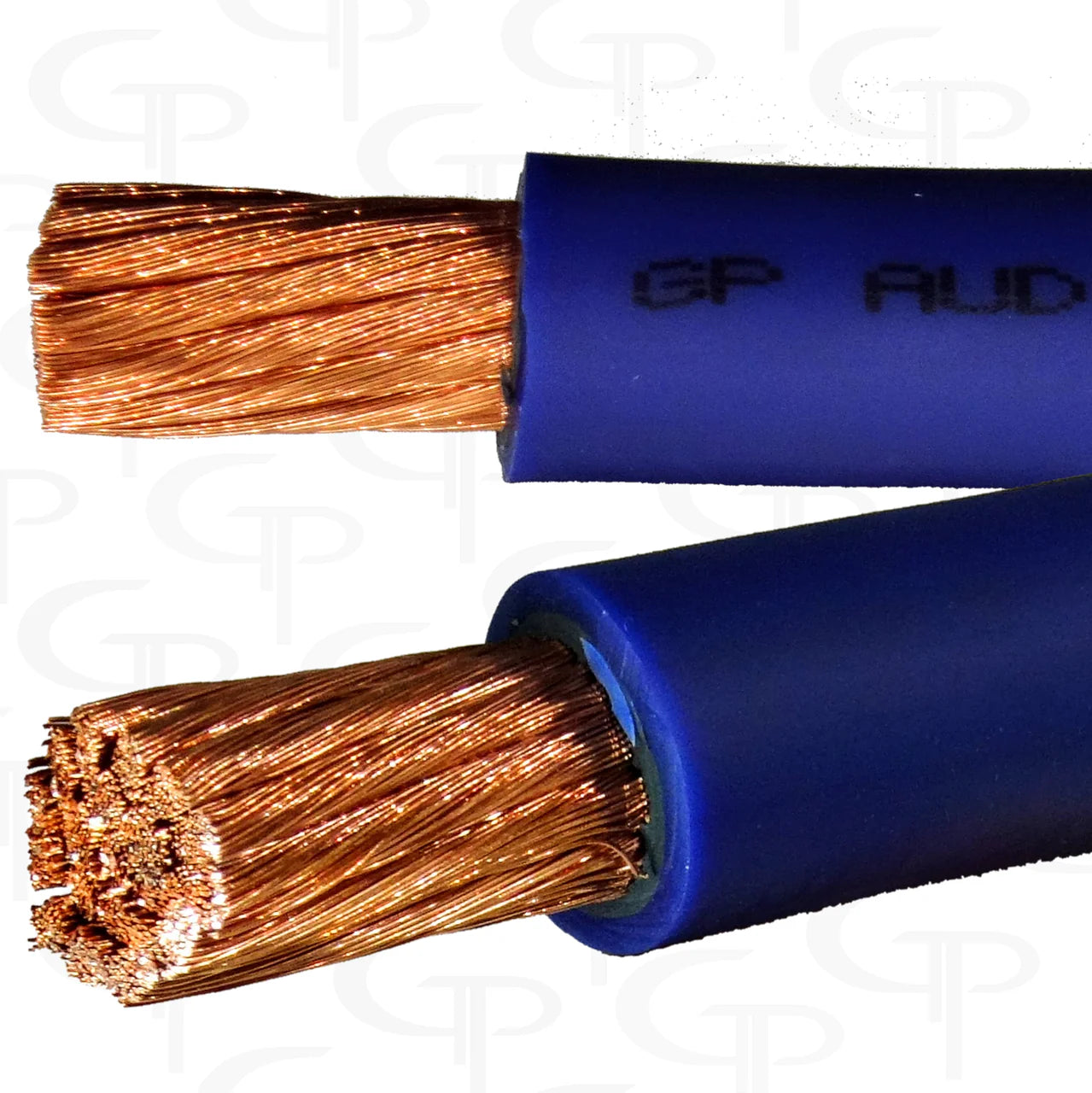

Using oxygen-free copper (OFC) wire instead of copper-clad aluminum (CCA) also improves conductivity and power delivery.
2. Poor Grounding Connections
The Mistake:
A bad ground connection can cause alternator whine, electrical interference, and unstable amplifier performance. Many people either use a weak ground point or fail to properly secure the connection.
The Fix:
- Use a solid metal-to-metal connection. Avoid painted or rusted surfaces.
- Keep the ground wire as short as possible (18 inches or less).
- Use the same gauge wire for grounding as you do for power.
- Secure the connection tightly with a ring terminal to prevent it from loosening over time.
If you hear a whining noise that changes with engine speed, your grounding may be the culprit.
3. Not Using a Fuse Near the Battery
The Mistake:
Skipping a fuse at the battery connection is a serious safety risk. If a short circuit occurs, it could cause electrical fires or permanently damage your car’s electrical system.
The Fix:
- Install a fuse within 12 inches of the battery on the power wire.
- The fuse rating should match the amplifier’s recommended amperage.
- If using a distribution block, make sure each component has proper fusing as well.
Never assume your system is safe without proper fusing in place!
4. Running Power and RCA Cables Together
The Mistake:
Routing your power cable and RCA cables together can introduce unwanted noise and ground loop issues, resulting in static, buzzing, or whine in your speakers.
The Fix:
- Run power cables on one side of the vehicle and RCA cables on the opposite side.
- Use shielded RCA cables to minimize interference.
- If you still hear interference, try adding a ground loop isolator to the RCA connections.
Proper cable management goes a long way in keeping your audio signal clean and clear.
5. Not Securing and Protecting Wires Properly
The Mistake:
Loose and exposed wiring can lead to electrical shorts, signal loss, and even fire hazards. Wires rubbing against metal parts of your car may wear through the insulation and cause serious damage.
The Fix:
- Use loom tubing or cable wraps to protect wires from heat and friction.
- Secure wiring with zip ties and cable clamps to prevent movement.
- Avoid running wires near sharp edges, hot surfaces, or moving parts like pedals.
A clean, well-organized install not only looks professional but also improves safety and system reliability.
6. Ignoring Voltage Drops and Power Loss
The Mistake:
If your amplifier isn’t getting consistent voltage, it may cut out, distort, or reduce performance. Running too many high-powered components without proper electrical support leads to voltage drops.
The Fix:
- Upgrade your alternator if needed, especially for high-powered systems.
- Add a big 3 wiring upgrade (battery-to-chassis ground, alternator-to-battery positive, and engine block-to-chassis ground) with 0 AWG or 4 AWG wire.
- Use a capacitor or secondary battery for extra power stabilization.
Your car’s electrical system needs to handle the demand of your audio setup efficiently.
7. Skipping a Test Run Before Finalizing the Installation
The Mistake:
Many installers finish the entire setup only to find that something isn’t working correctly. This often leads to unnecessary troubleshooting and extra work.
The Fix:
- Before securing all wiring, test your system to ensure everything works properly.
- Check for proper voltage at the amplifier, signal clarity, and speaker function.
- Look for any loose connections or unusual noises before reassembling panels.
Taking this extra step can save hours of frustration later on.
Final Thoughts: Get the Most Out of Your Car Audio System
Avoiding these common car audio wiring mistakes will ensure your system operates at its best. By using the right gauge wire, securing proper ground connections, adding necessary fuses, and managing your cables correctly, you can prevent sound issues, electrical failures, and potential safety hazards.
