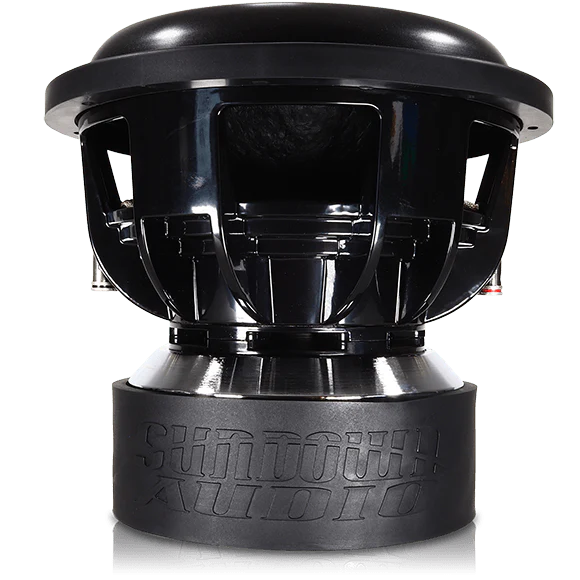

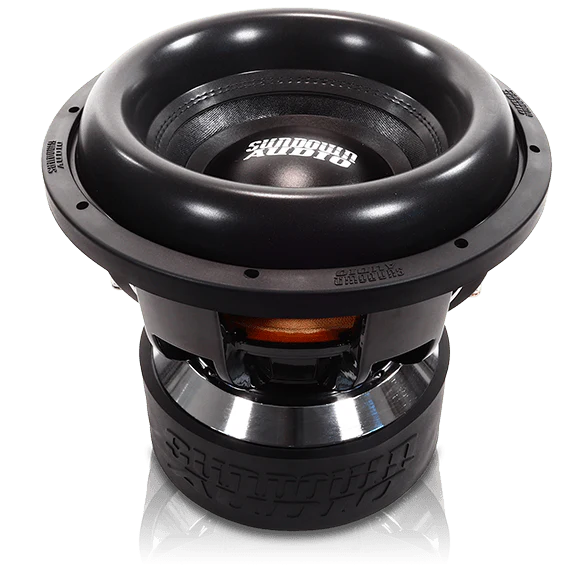

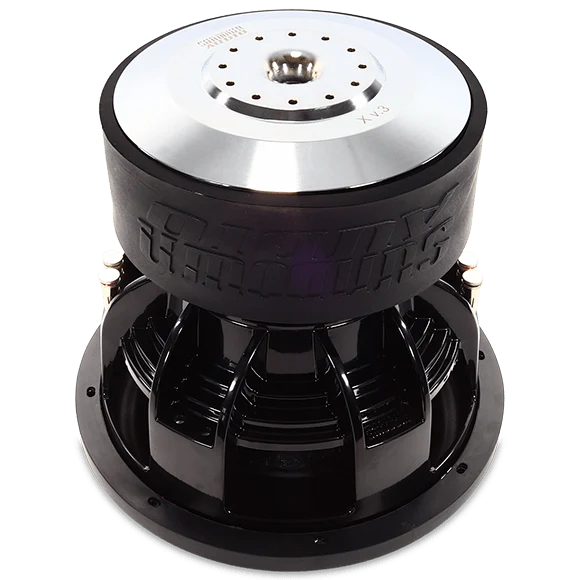

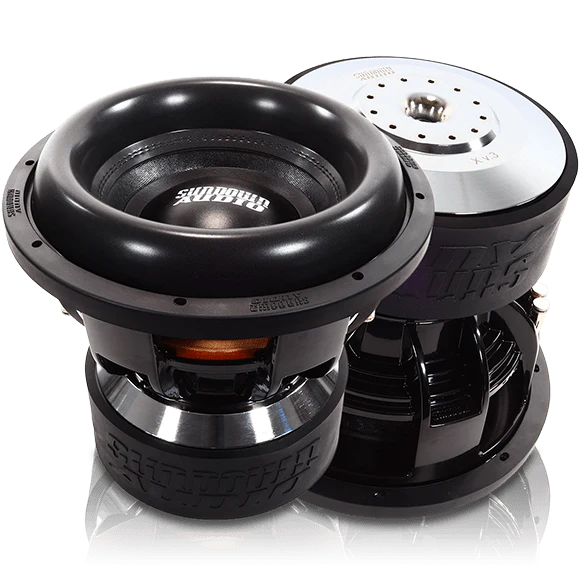

Sundown Audio X Series v.3 12" 2500 Watt RMS Subwoofer
Sundown Audio X Series v.3 12" 2500 Watt RMS Subwoofer - 1 OHM is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability


Delivery and Shipping



                  Delivery and Shipping
We ship our products anywhere in the world and provide FREE shipping on all orders in the continental (48) States
Quantity of 1 equals 1 subwoofer.
- 2500 Watts RMS / 5000 Watts Peak

- Dual 1 or 2 ohm voice coil
- Made for extremely deep bass
- Triple-stacked magnet
- 3” voice coil
- Hyper-extended pole
- Built to order
Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.
The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.
Specifications
| T/S SPECS | X V.3 12″ D1 | X V.3 12″ D2 |
|---|---|---|
| RE (Ohms) | 1.4 | 3.2 |
| FS (Hz) | 37.098 | 37.235 |
| VAS (L) | 12.986 | 17.077 |
| Qes | 0.486 | 0.543 |
| Qms | 2.597 | 2.779 |
| Qts | 0.409 | 0.454 |
| Le (mH) | ||
| BL (NA) | 15.943 | 19.857 |
| Mms (Grams) | 378.626 | 285.817 |
| Cms (uM/N) | 48.611 | 63.922 |
| Sens (dB @ 1w/1m) | 83.2dB | 84.0dB |
| Xmax | 30mm | 30mm |
Enclosure Specifications
| X v.3 12 | |
| Sealed Enclosure | N/A |
| Ported Enclosure | 2.5 cu ft |
| Recommended Tuning | 32hz |
| Recommended Port Area | 40 sq in |
| Displacement | 0.2 cu ft |
| Depth | 10.4" |
| Outside Diam. | 12.68" |
| Cutout | 11.09" |
| Physical Dimensions | Download |
Subwoofer Size: 12"
