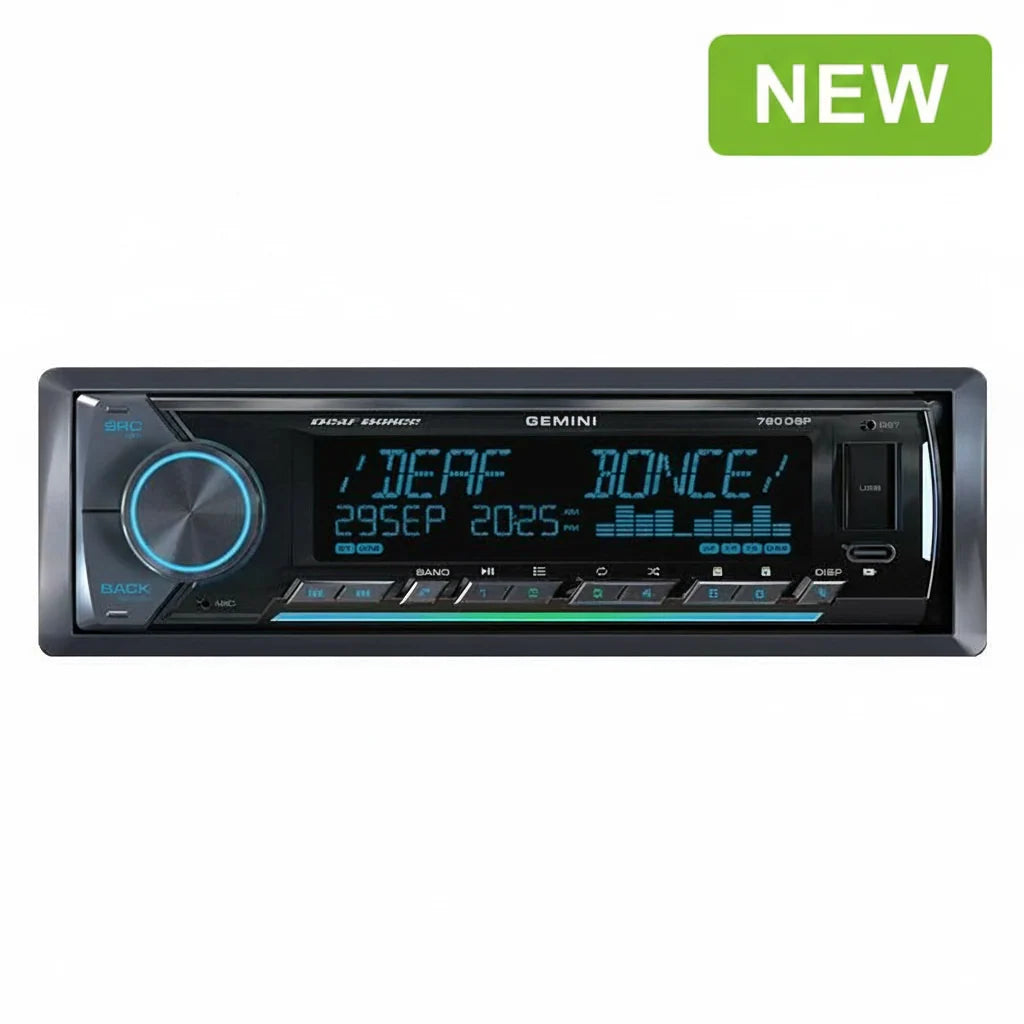

Deaf Bonce Gemini 760DSP HEAD UNIT 4 X 25W RMS 5.5v Output
Deaf Bonce Gemini 760DSP HEAD UNIT 4 X 25W RMS 5.5v Output is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship our products anywhere in the world and provide FREE shipping on all orders in the continental (48) States
The Gemini 700 Series represents the new flagship lineup in our brand’s range, engineered to deliver exceptional performance and complete control over any car audio system. Each model is equipped with everything needed to achieve precise tuning, powerful output, and outstanding sound quality:
-
Built-in high-fidelity amplifier delivering 4 × 25W — the maximum safe power for factory wiring, with exceptional clarity and detail
-

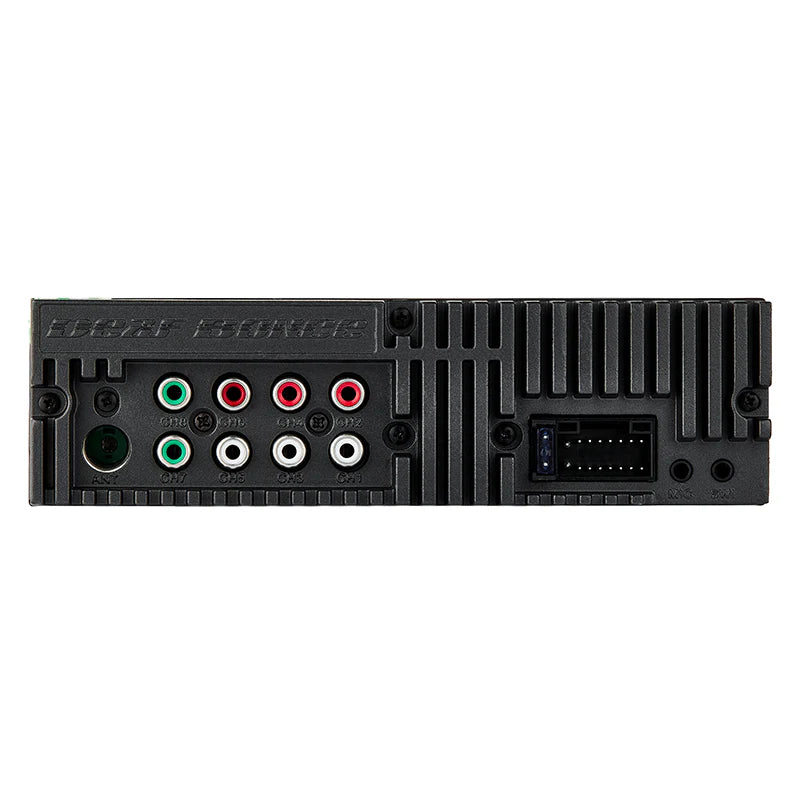

8 RCA outputs providing clean, neutral, and highly detailed sound with excellent dynamics and an impressive 5.5V output voltage
-
Bluetooth 5.3 audio transmission — the most advanced standard currently available in car head units, offering superior connection stability, speed, and audio quality
-
Support for operating voltage up to 17V, ensuring reliability even in demanding electrical setups
-
Powerful proprietary DSP processor, designed to tune any vehicle with precision — including time alignment, 24 dB/Oct crossover configuration, and a 28-band equalizer for creating the perfect in-car soundstage
The series includes three uniquely designed models:
Gemini 750DSP, Gemini 760DSP, and Gemini 770DSP, each offering premium performance and modern functionality.
| Specification | Details |
|---|---|
| Model | Gemini 760DSP |
| Power Output RMS (4 Ohms) | 4 × 25W |
| Total RCA Outputs | 8 |
| Wideband RCA Outputs | 6 |
| Subwoofer RCA Outputs | 2 |
| RCA Output Voltage | Up to 5.5V |
| AUX Output | No |
| Card Reader | No |
| USB Input | Yes |
| Charging Port | Yes |
| Supported Audio Formats | MP3 WMA AAC FLAC WAV |
| Hands-Free Support | Yes |
| Operating Voltage | 10–17V |
| Input Connection Terminal | No information |
| Output Connection Terminal | No information |
| Illumination Type | ARGB, 16.7 million colors |
| Amplifier Class | AB |
| Frequency Range | 15–20,000 Hz |
| Wideband Channel Frequency Range | 15–20,000 Hz |
| Signal-to-Noise Ratio | ≥ 80 dB |
| Minimum Load per Channel | 4 Ohms |
| DSP Processor | Yes |
| Time Delay Adjustment | 0–18 ms |
| Time Delay Step | 0.1 ms, 3 cm, 1 inch |
| Length | 130 mm |
| Width | 188 mm |
| Height | 57 mm |
Deaf Bonce Gemini 760DSP HEAD UNIT 4 X 25W RMS 5.5v Output
