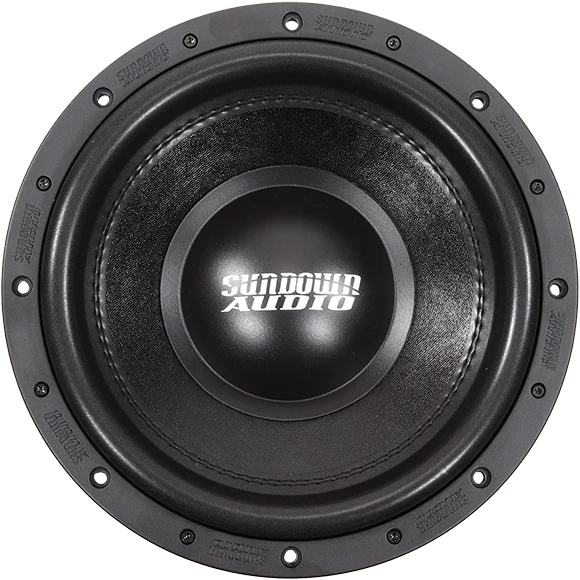

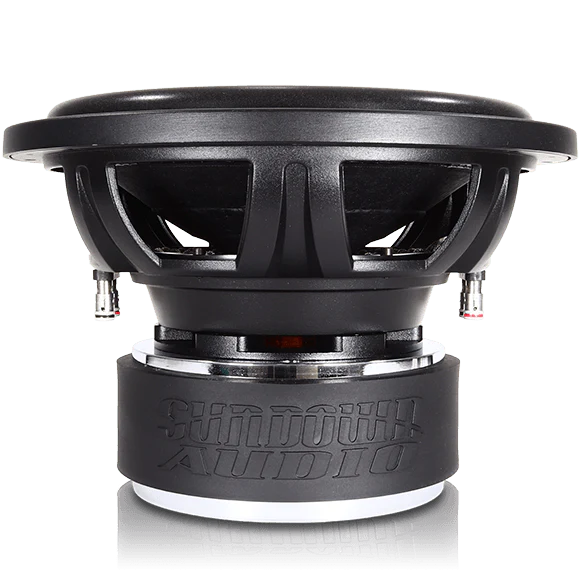

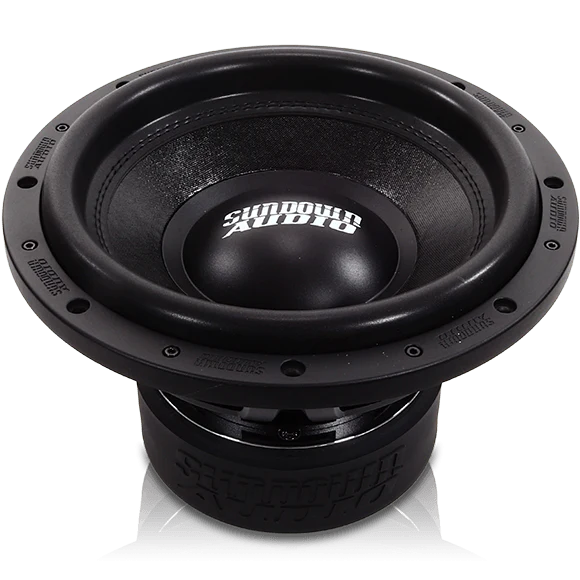

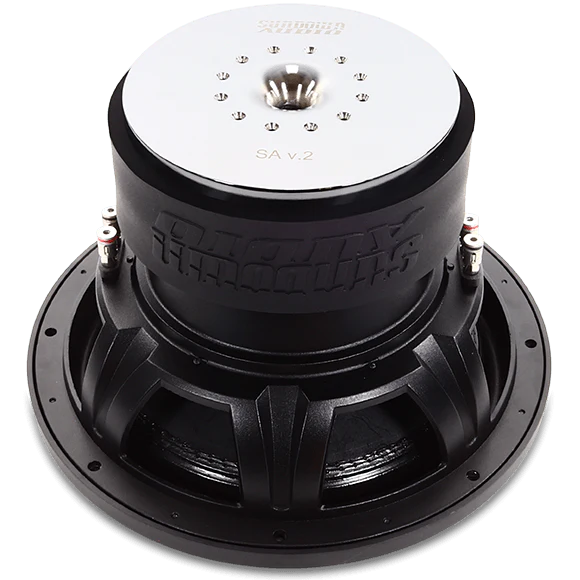

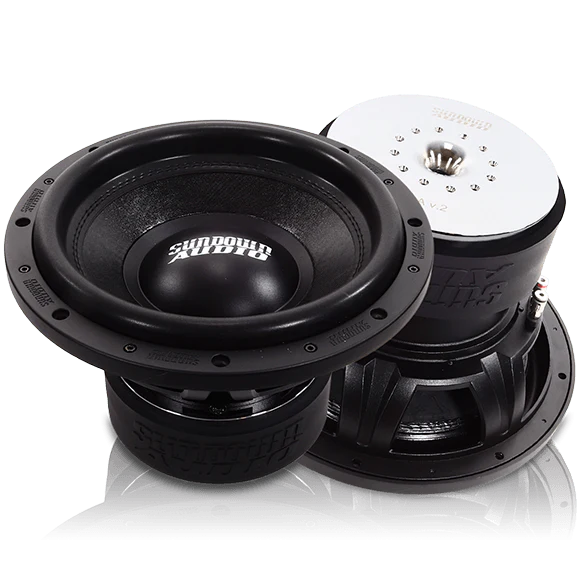

Sundown Audio SA-12 v.2 1000-watt DVC Subwoofer

Product Description

• Features (SA-10/12/15/18 v.2)

  • Xmax = 19mm one-way by 70% BL
  • RMS Power = 1000-watts
  • Vented magnetic gap
  • Optimized high-velocity pole vent
  • Innovative high-velocity vented frame spacer ring
  • Black Aluminum 2.75" voice coil former for superior heat dissipation
  • High Temperature copper voice coil wire
  • Large aluminum faraday ring (Magnet ID)
  • Spring Loaded Terminals
  • Stitched-On Double "XL" Tinsel Leads to prevent fatigue and failure
  • High strength cast aluminum frame
  • Optimized for small ported, sealed, & band-pass enclosures

  List of upgrades compared to the v1 SA series (Rev.1,2,3):

  1. Magnet outer diameter increased from 180mm to 190mm
  2. Magnet slugs increased from 25mm to 27mm in height (total 4mm more height)
  3. Motor structure fully bolted together with 3x M6 bolts (eliminates the possibility of motor shifting)
  4. Top-Plate "Slits" implemented as with the X and Z series. Increased cooling & reduced distortion.
  5. Improved gap venting — more / flared gap vents.
  6. Improve pole-vent design — smoothly flared on both sides.
  7. Coil increased from 63.5mm (2.5") to 70mm (2.75") in diameter. Higher thermal capacity.
  8. New "U series" style cast-aluminum frame for taller cones (more x-mech both top-side from cone to spider and bottom from spider to top plate)
  9. Aluminum cast gasket to bolt-on surround.
  10. Aluminum cast vent ring to enhance thermal transfer from motor to the frame.
  11. Standard with double "XL" leads and "bolted-on" spider
  12. Larger and thicker surround (same tooling as U series).
  13. Strongest paper cones we have ever produced... new two-piece mold technique.
  14. "Large Flange" dust cap just like our larger woofers. Essentially eliminates dust-cap glue failure.
  15. Larger spider diameter on the 12/15" models (the 10" retains the same 188mm spider)... 12" up to ~200mm and 15" up to ~210mm
  16. Improved spider material for longer life.




  SA V.2 12"

  T/S SPECS	SAV2 12" D2	SAV2 12" D4
  RE (Ohms)	3.91	6.35
  FS (Hz)	38.8866	33.6039
  VAS (L)	26.2867	28.0603
  Qes	0.5070	0.4996
  Qms	4.5133	4.0178
  Qts	0.4558	0.4443
  Le (mH)	3.1785	4.6357
  BL (NA)	21.9903	29.3900
  Mms (Grams)	256.5545	321.8425
  Cms (uM/N)	65.2922	69.6976
  Sens (dB @ 1w/1m)	86.59	85.03



  SA V.2 12"

  Sealed Enclosure	1.0 cu ft
  Ported Enclosure	1.75 cu ft
  Recommended Tuning	35Hz
  Recommended Port Area	26 sq in
  Displacement
  Depth	7.35"
  Outside Diameter	12.83"
  Cut-Out	11.01"
  Physical Dimensions	Download
