SUNDOWN AUDIO | SKU:
1726QD

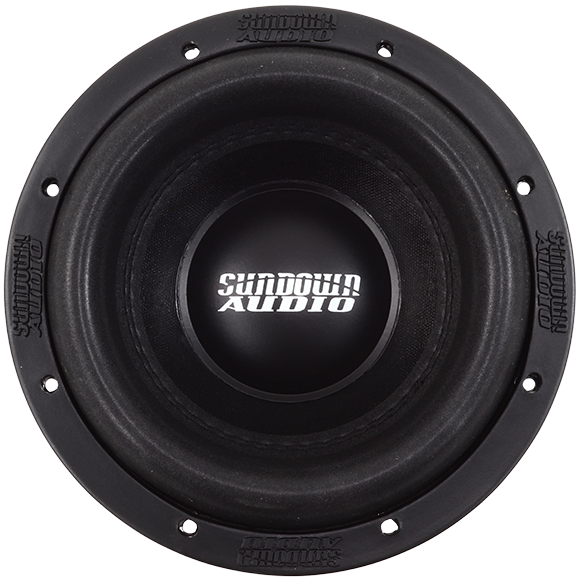

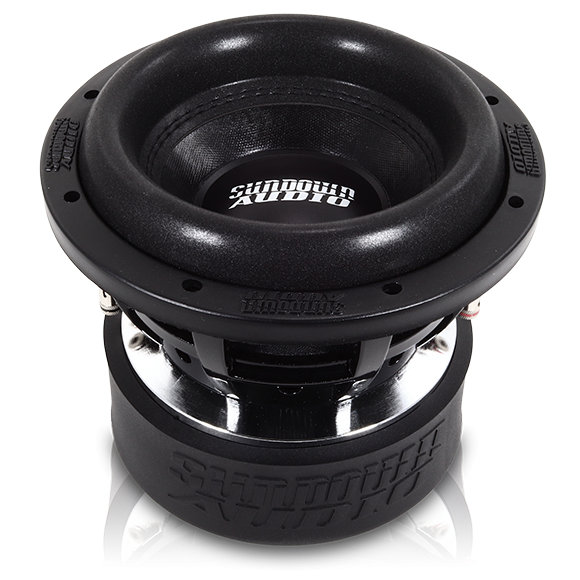

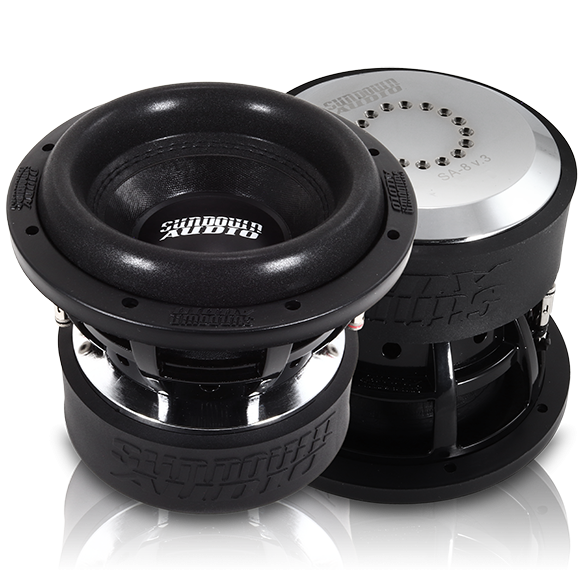

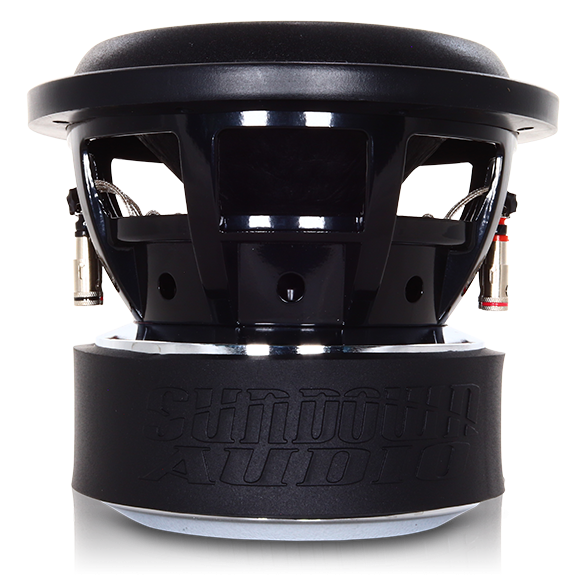

Sundown Audio SA 8 v.3 DVC Subwoofer 500w RMS
$249.99 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Sundown Audio SA 8 v.3 DVC Subwoofer 500w RMS is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship our products anywhere in the world and provide FREE shipping on all orders in the continental (48) States
Product Description
SA-8 v.3
- Xmax = 16mm one-way by 70% BL
- RMS Power = 500-watts
- Vented magnetic gap featuring sixteen chamfered gap vents
- Solid Pole piece with chamfered edges for increased air powered voice coil cooling
- High velocity under-spider frame vents
- Black Aluminum 2" voice coil former for superior heat dissipation
- High Temperature copper voice coil wire
- Large Magnet ID aluminum faraday ring
- Spring Loaded Terminals
- Stitched-On "XL" Tinsel Leads to prevent fatigue and failure
- High strength & patented cast aluminum frame
- Optimized for small, ported enclosures
SA V.3 8"
| T/S SPECS | SAV3 8" D2 | SAV3 8" D4 |
|---|---|---|
| RE (Ohms) | 3.36 | 6.0 |
| FS (Hz) | 38.29 | 40.0 |
| VAS (L) | 6.88 | 7.17 |
| Qes | 0.324 | 0.392 |
| Qms | 6.31 | 4.31 |
| Qts | 0.309 | 0.36 |
| Le (mH) | 2.08 | 3.32 |
| BL (NA) | 18.94 | 22.06 |
| Mms (Grams) | 144 | 126.6 |
| Cms (uM/N) | 120 | 125 |
| Sens (dB @ 1w/1m) | 82.79 |
82.71 |
SA V.3 8"
| Sealed Enclosure | 0.3 cu ft |
| Ported Enclosure | 0.65 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 9 sq in |
| Displacement | 0.08 cu ft |
| Depth | 6.625" |
| Outside Diameter | 8.375" |
| Cut-Out | 7.375" |
| Physical Dimensions | Download |
