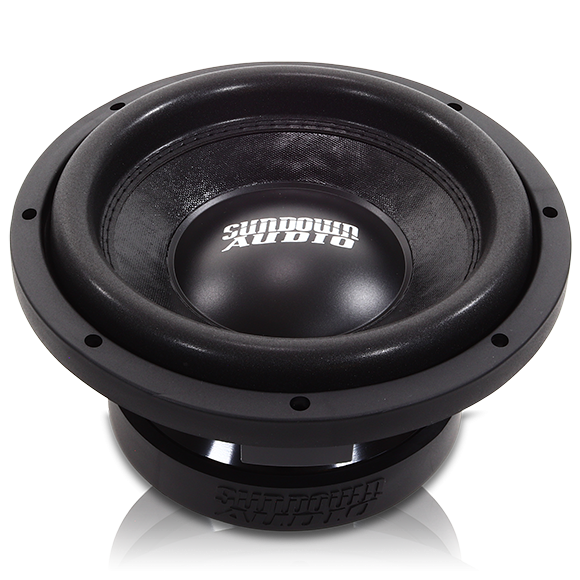

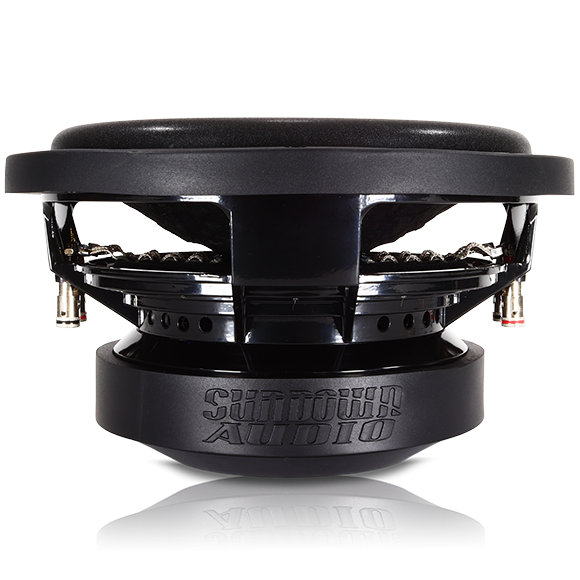

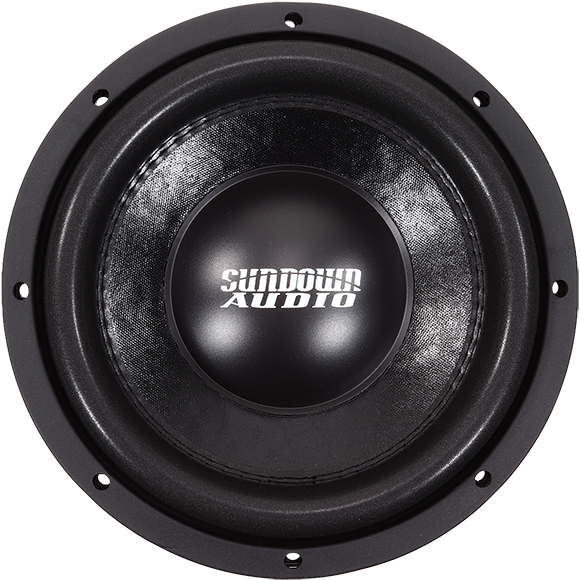

Sundown Audio SLD 10" 600 Watt Shallow Subwoofer D2/D4

The Sundown SLD series can be considered a “re-boot” of the SD-2 line from 2011. The SD-2 was essentially a “shallow SA v1” by design – meaning it shared the cone, surround, and spider with the SA but with a shorter motor with a shorter coil. The SD series went another route starting with the 3rd generation (SD-3) – tilting more towards SQ and sealed enclosures (this remains true for the SD-4 series as well). Due to popular demand we created the SLD series to add a heavily abuse tolerant “shallow” that likes ported boxes back into the line-up!

Much like the current SD-4 series we utilized solid pole-piece so the SLD can also be mounted directly against the rear enclosure wall to reduce net depth requirements. Compared to the old SD-2 we have introduced numerous important upgrades: pole-piece channels for reduced air noise & increased cooling, top-plate “slits” for better cooling and less distortion, and a magnet ID shorting ring. In terms of long-term reliability we have also bolted down the spider, bolted the motor together, bolted on the aluminum pole cap, and added “mini-XL” lead wires thus ensuring many years of flawless service.

The bottom line is if you need a relatively shallow woofer that will take a beating then the SLD is, hands-down, the woofer for you from our line. If you are looking for more SQ then look toward the SD-4 series.

• Features

  • Xmax = 12mm one-way by 70% BL
  • Xmech is a hard limit of 25mm one-way (being over 2x the Xmax it is a very generous limit)
  • RMS Power = 600-watts
  • Black Aluminum 2.5 voice coil former for superior heat dissipation
  • High Temperature 4-Layer copper voice coil wire

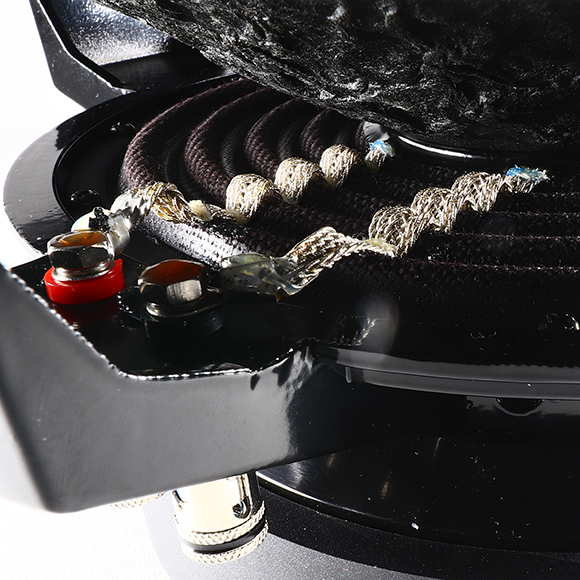

  • Stitched-On Mini-XL Tinsel Leads to prevent fatigue and failure
  • Solid Pole with high velocity vent channels machined around the OD
  • Vented, EMD Cut, Top-Plate Design
  • Bolt-through motor design to ensure maximum longevity and ruggedness against mechanical failures

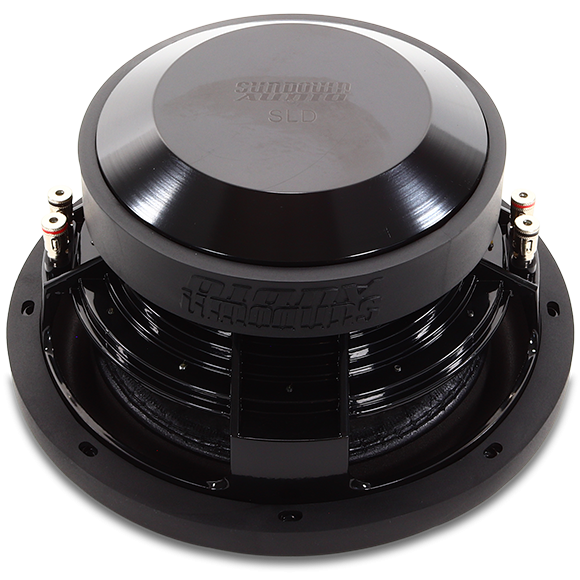

    ** This motor is bolted through the top so the bolts are not visible from the back like several other models.
  • Magnet ID shorting ring

  SLD 10"

  T/S SPECS	SLD 10 D2	SLD 10 D4
  RE (Ohms)	3.65	6.85
  FS (Hz)	44.907	46.817
  VAS (L)	14.630	12.091
  Qes	0.452	0.547
  Qms	2.212	2.246
  Qts	0.376	0.440
  Le (mH)
  BL (NA)	18.247	24.492
  Mms (Grams)	146.252	162.818
  Cms (uM/N)	85.883	70.979
  Sens (dB @ 1w/1m)	86.5	85.4



  SLD 10"

  Sealed Enclosure	0.5 cu ft
  Ported Enclosure	1.0 cu ft
  Recommended Tuning	35Hz
  Recommended Port Area	15 sq in
  Displacement
  Depth	4.9"
  Outside Diameter	10.5
  Cut-Out	9.25
  Physical Dimensions	Download
