Product Description

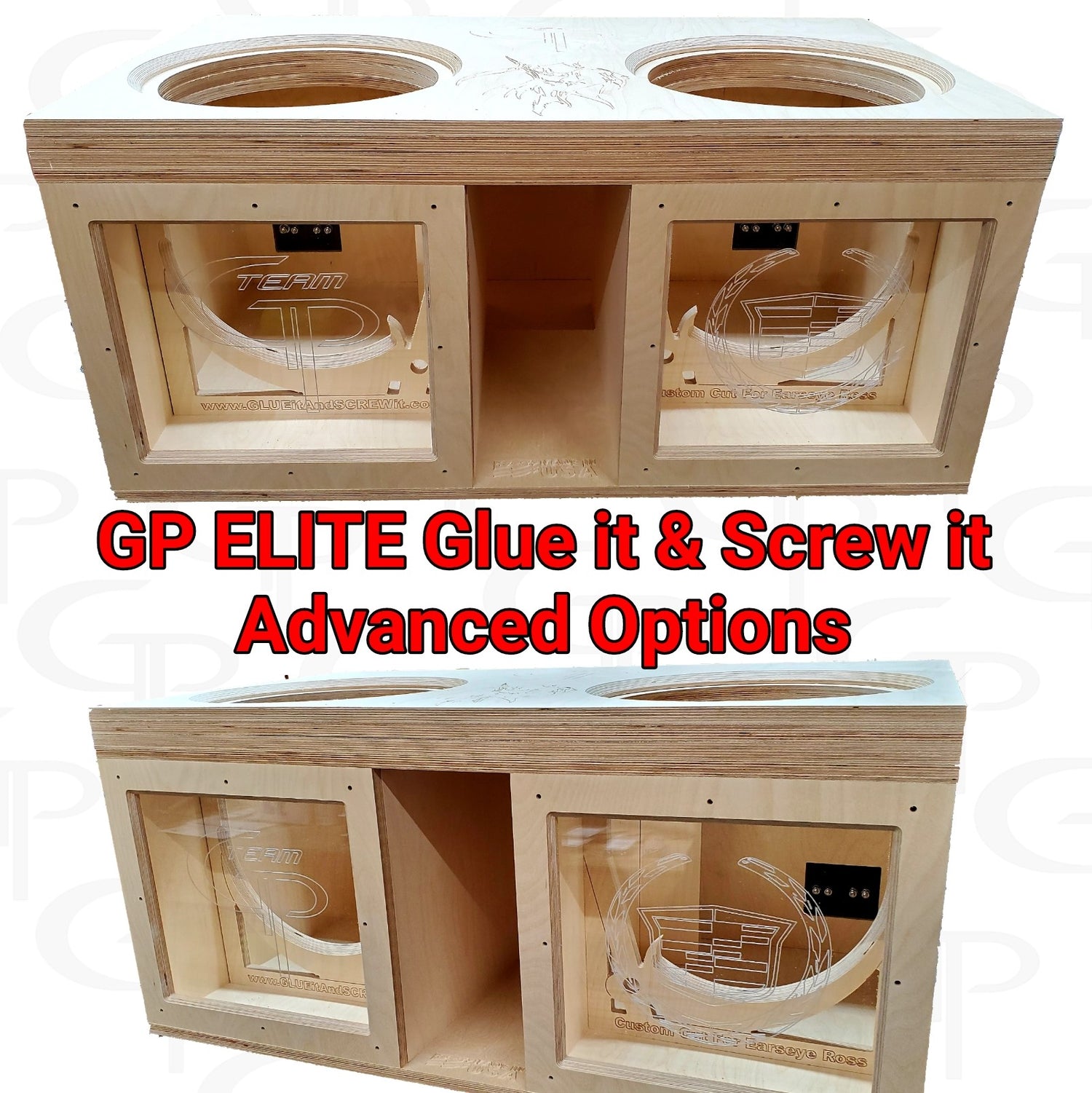

GP Elite Advanced Options
*Assembly Required*
NOTE* Below is estimated enclosure dimensions. Tuning will change the enclosure sizes slightly. Based off your options chosen, if anything is drastically different from the dimensions noted below, we will call you to verify fitment.
______________________________
37hz
Box External Dimensions Width x Height x Depth |
46.00" x 16.50" x 26.26" |
Material Thickness | 0.75" |
Net Internal Volume | 8.00 ft3 |
Tuning Frequency | 37 Hz |
Port Area | 120.00 inch2 |
Port Inlet Width x Height |
8.00" x 15.00" |
Port Length |
16.15"
|
______________________________
35hz
Box External Dimensions Width x Height x Depth |
46.00" x 16.50" x 26.93" |
Material Thickness | 0.75" |
Net Internal Volume | 8.00 ft3 |
Tuning Frequency | 35 Hz |
Port Area | 120.00 inch2 |
Port Inlet Width x Height |
8.00" x 15.00" |
Port Length | 19.62" |
______________________________
33hz
Box External Dimensions Width x Height x Depth |
46.00" x 16.50" x 27.75" |
Material Thickness | 0.75" |
Net Internal Volume | 8.00 ft3 |
Tuning Frequency | 33 Hz |
Port Area | 120.00 inch2 |
Port Inlet Width x Height |
8.00" x 15.00" |
Port Length | 23.74" |
______________________________
31hz
Box External Dimensions Width x Height x Depth |
46.00" x 16.50" x 28.75" |
Material Thickness | 0.75" |
Net Internal Volume | 8.00 ft3 |
Tuning Frequency | 31 Hz |
Port Area | 120.00 inch2 |
Port Inlet Width x Height |
8.00" x 15.00" |
Port Length | 28.68" |
______________________________
29hz
Box External Dimensions Width x Height x Depth |
46.00" x 16.50" x 29.99" |
Material Thickness | 0.75" |
Net Internal Volume | 8.00 ft3 |
Tuning Frequency | 29 Hz |
Port Area | 120.00 inch2 |
Port Inlet Width x Height |
8.00" x 15.00" |
Port Length | 34.68" |
