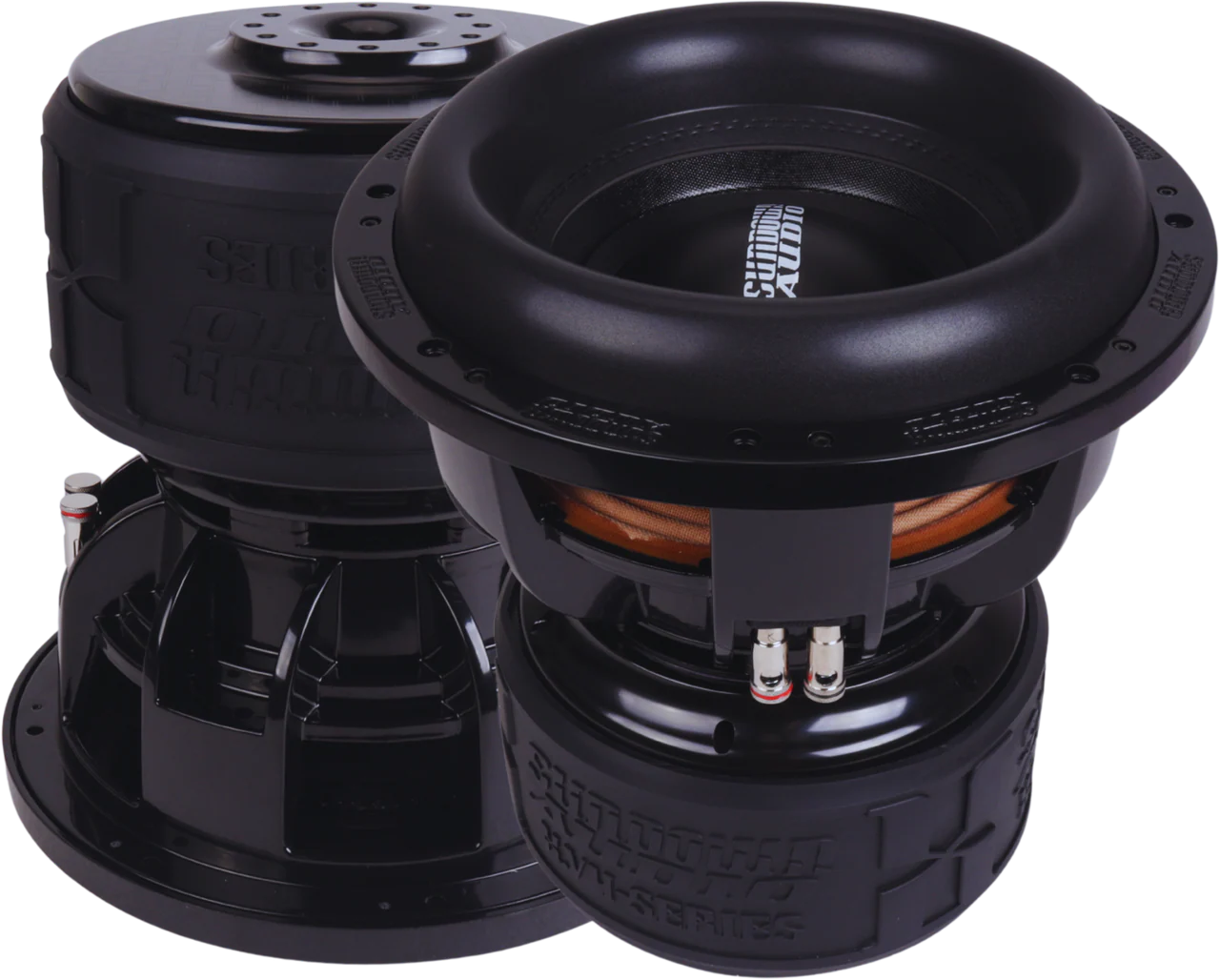

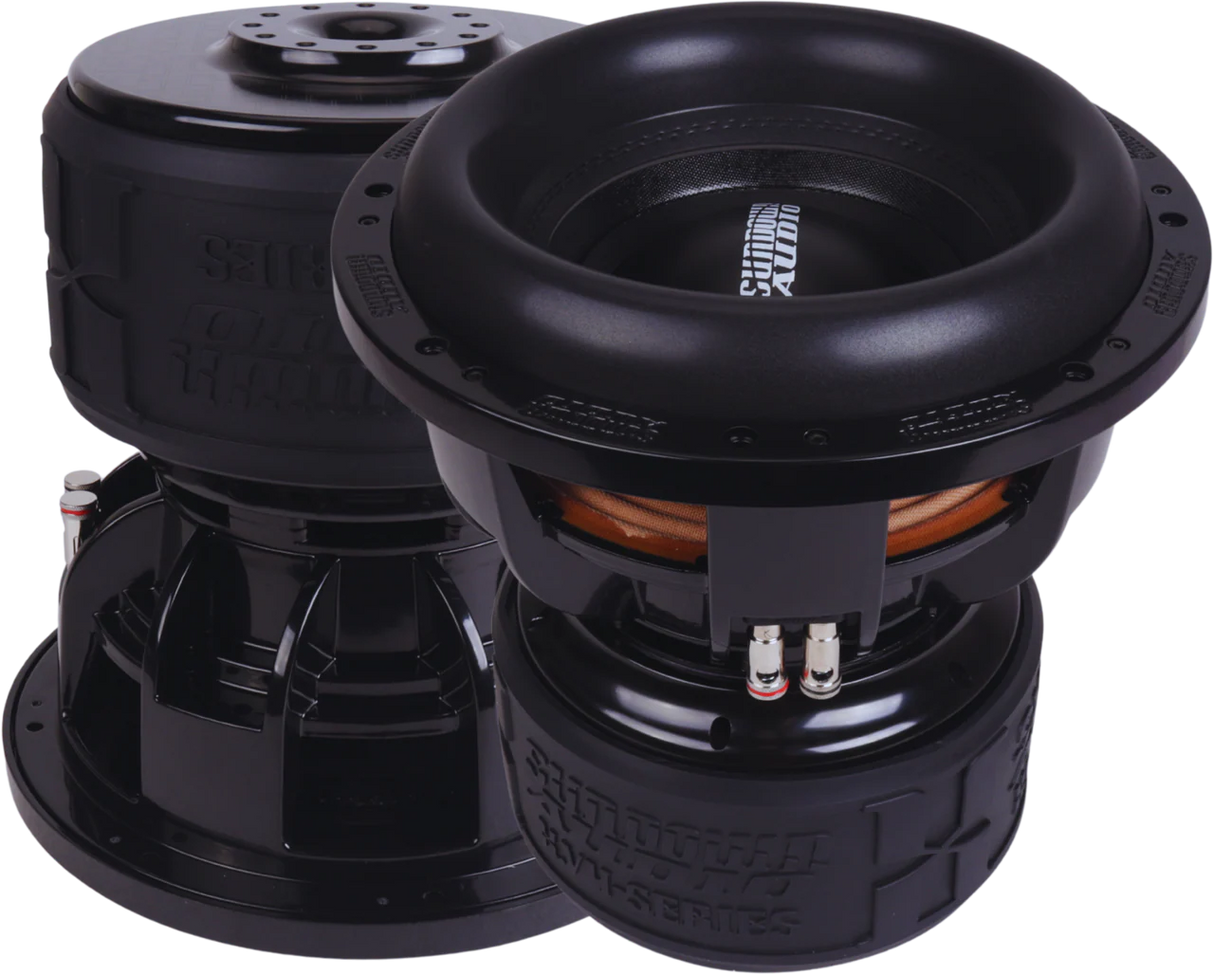

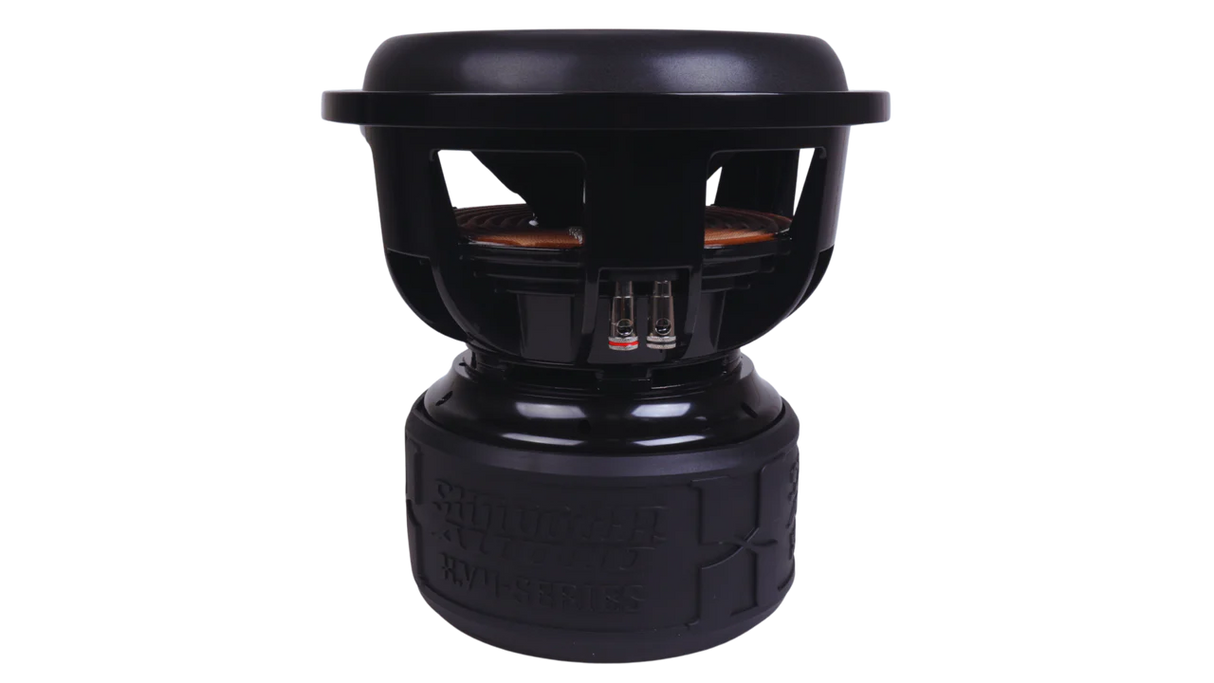

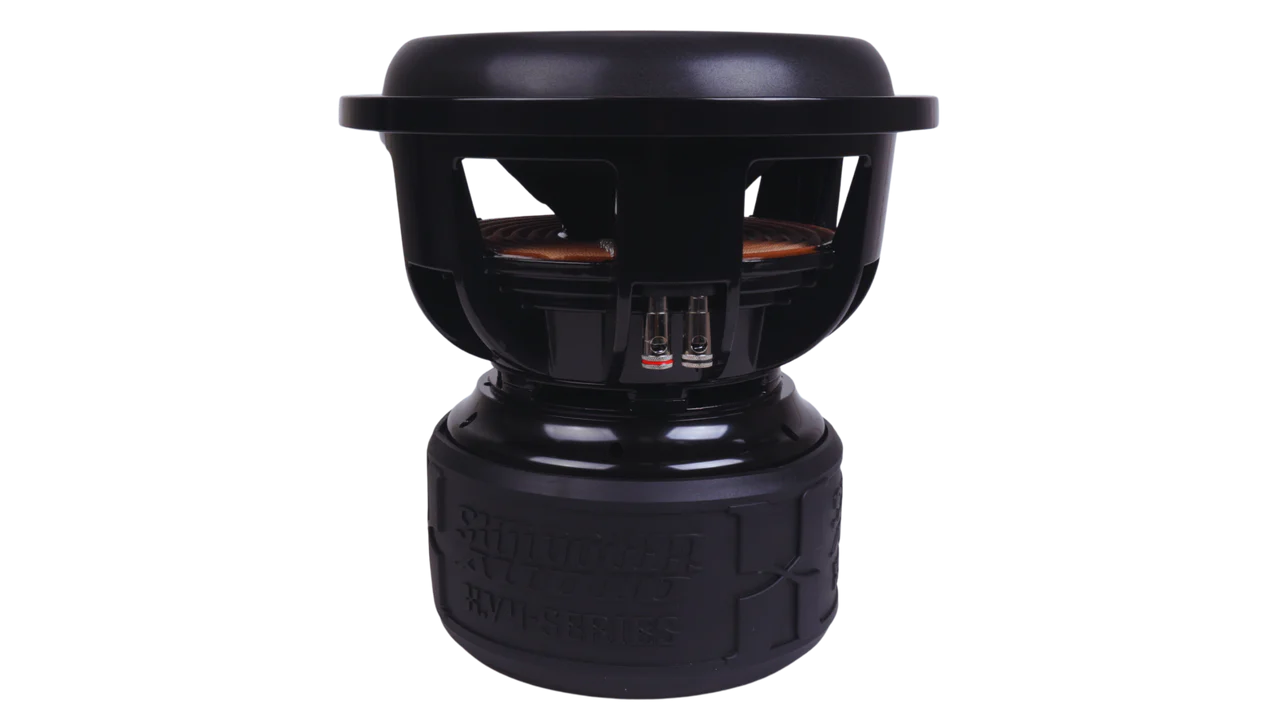

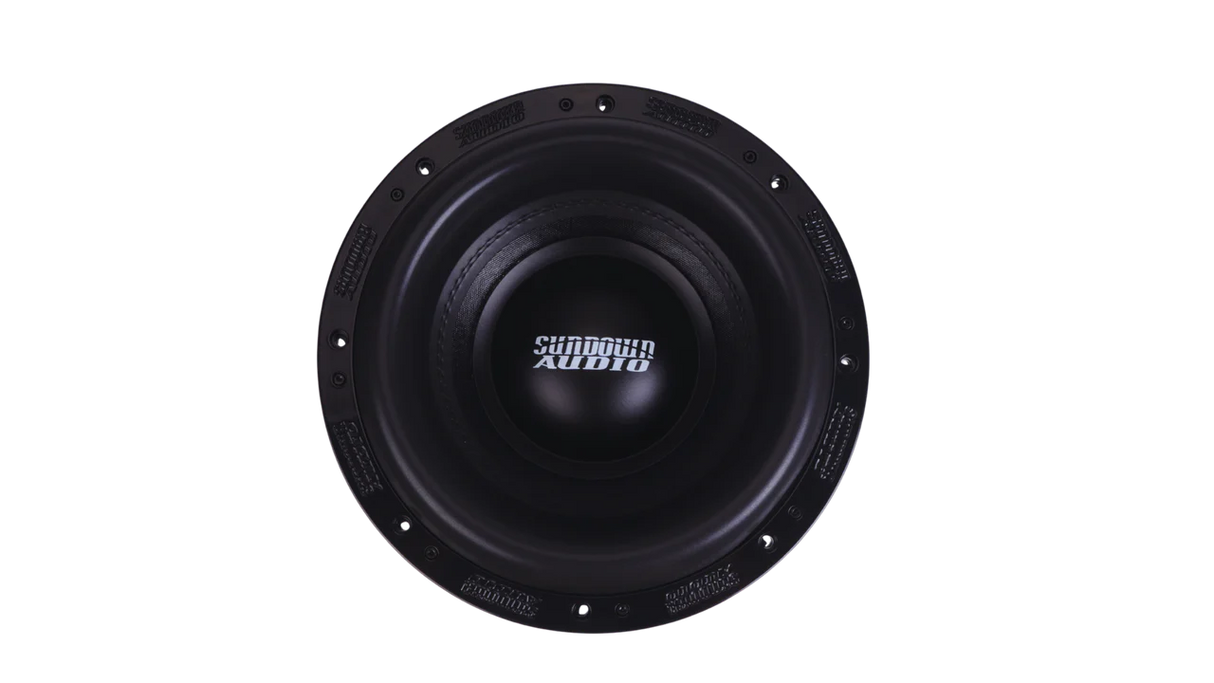

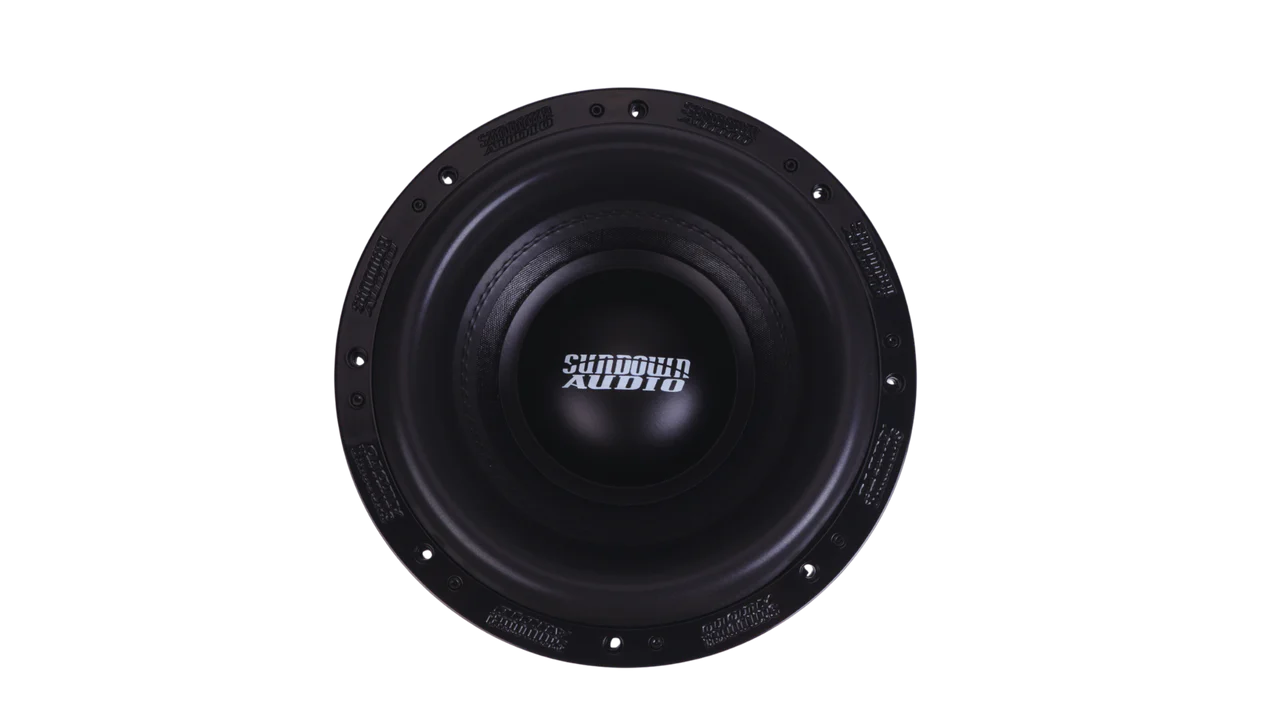

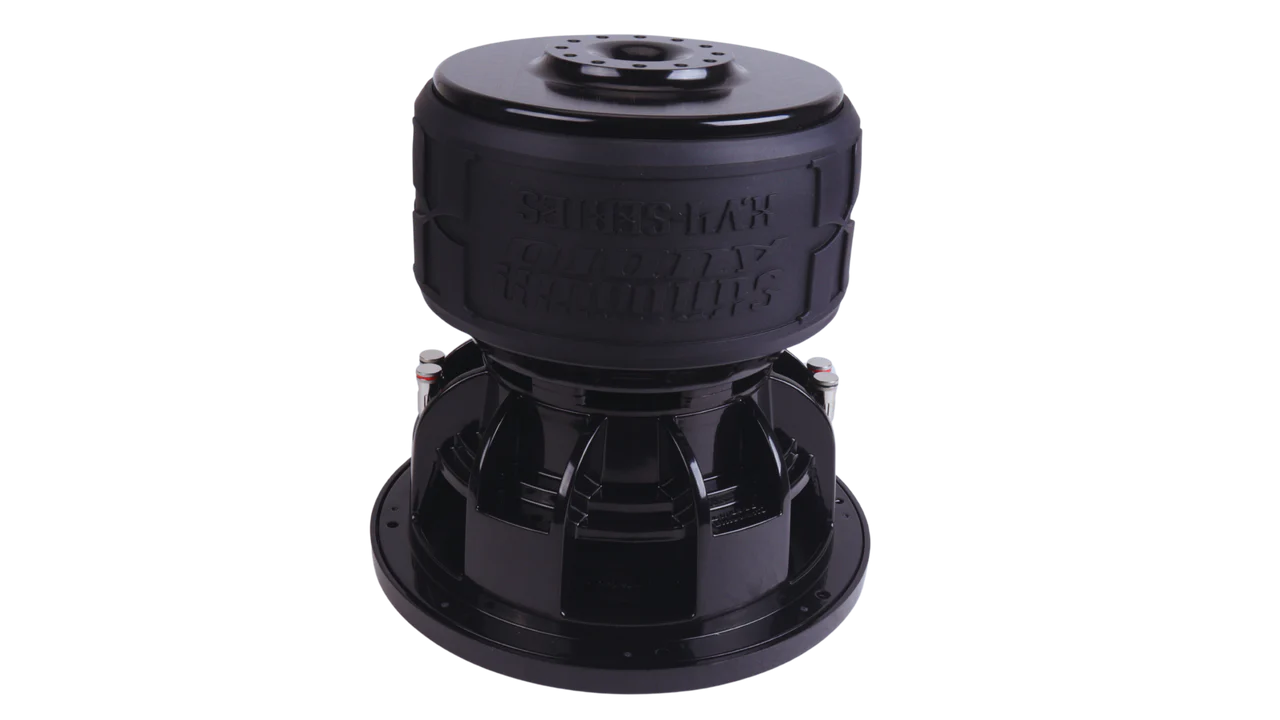

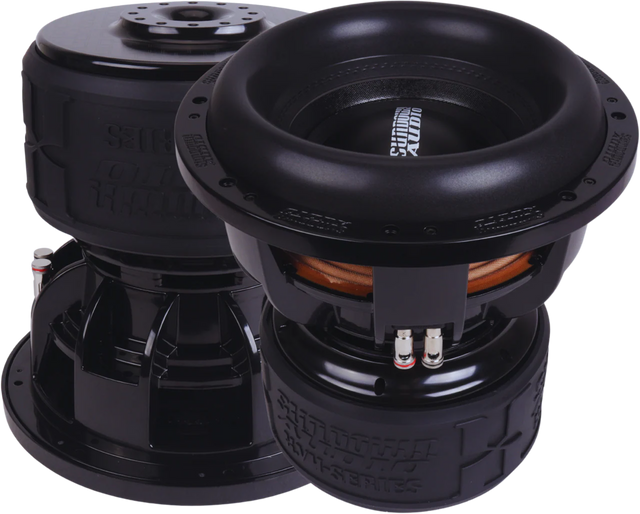

Sundown Audio X-12 v.3 (2000 watt) Subwoofer D1/D2

Brand :

(No reviews yet) Write a Review
Was: $649.99
Now: $519.99
Sale

X v.3 Series 2000W DVC Subwoofer

  • The X v.3 series is the entry into the Sundown Audio “ultra-high excursion” suspension and frame designs. They all feature our custom tooled and patented frames (US Patent Numbers D691596, D691597, D691598, and D741841).

    We mate these new platforms to a triple stacked 225mm (8.86”) diameter motor structure featuring a hyper-extended pole and extreme clearances (allowing up to 4″ p-p travel before mechanical bottom). This motor drives a 3″ diameter 4-layer flat aluminum coil wound on a thick aluminum former to incredible levels of excursion. This is the same coil design utilized in the NS v.3 and Z v.5 series in the past. It is a proven coil with monstrous power handling potential. The combination of coil and updated motor for the X v.3 series brings its performance in terms of motor force to about 85% of the level of the previous generation Z v.5 series! So this makes the X v.3 an incredible value.

    The X v.3 series was designed from the ground-up to become the new standard in the low-frequency / small ported box subwoofer category in this price range. They will work in the same small enclosures that you are used to using for Sundown Audio subwoofers, although, the will tolerate enclosures up to about 50% larger than those if you desire even more low-end extension.

    The X v.3 series is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion.



    X V.3 12"

    T/S SPECSX V.3 12″ D1X V.3 12″ D2
    RE (Ohms) 1.4 3.2
    FS (Hz) 37.098 37.235
    VAS (L) 12.986 17.077
    Qes 0.486 0.543
    Qms 2.597 2.779
    Qts 0.409 0.454
    Le (mH)
    BL (NA) 15.943 19.857
    Mms (Grams) 378.626 285.817
    Cms (uM/N) 48.611 63.922
    Sens (dB @ 1w/1m) 83.2dB 84.0dB

    Enclosure Specifications

      X v.3 8 X v.3 10 X v.3 12 X v.3 15 X v.3 18
    Sealed Enclosure 0.3-.04cuft N/A N/A N/A N/A
    Ported Enclosure 0.75-1.0 cu ft 1.5 cu ft 2.5 cu ft 4.25 cu ft 7.00 cu ft
    Recommended Tuning 32hz 32hz 32hz 32hz 32hz
    Recommended Port Area 12-16 sq in 24 sq in 40 sq in 68 sq in 112 sq in
    Displacement 0.13 cu ft 0.21 cu ft 0.2 cu ft 0.22 cu ft 0.23 cu ft
    Depth 6.8" 9.4" 10.4" 11.6" 13.6"
    Outside Diam. 8.70" 11.65" 12.68" 15.51" 18.42"
    Cutout 7.36" 10.01" 11.09" 13.83" 16.69"
