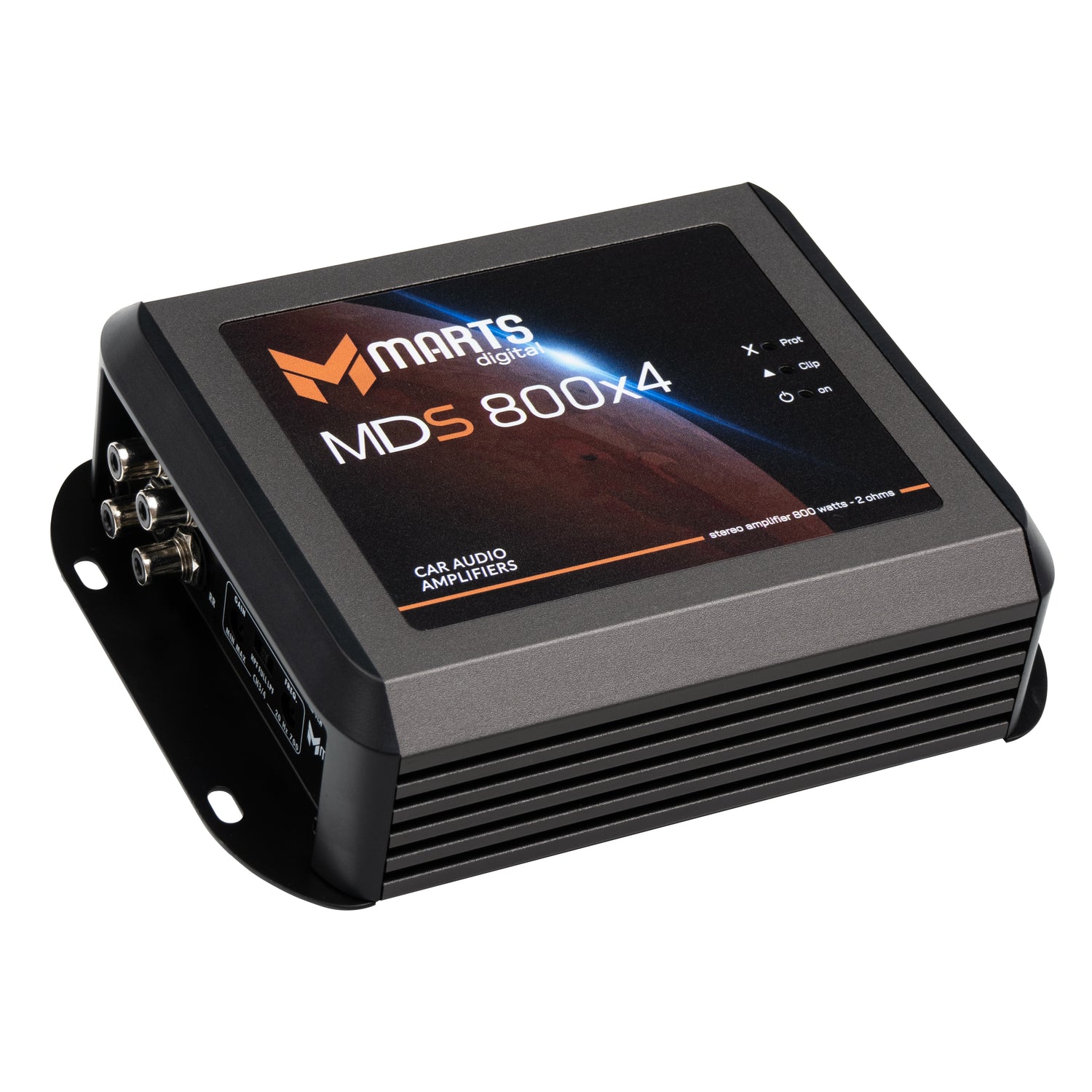

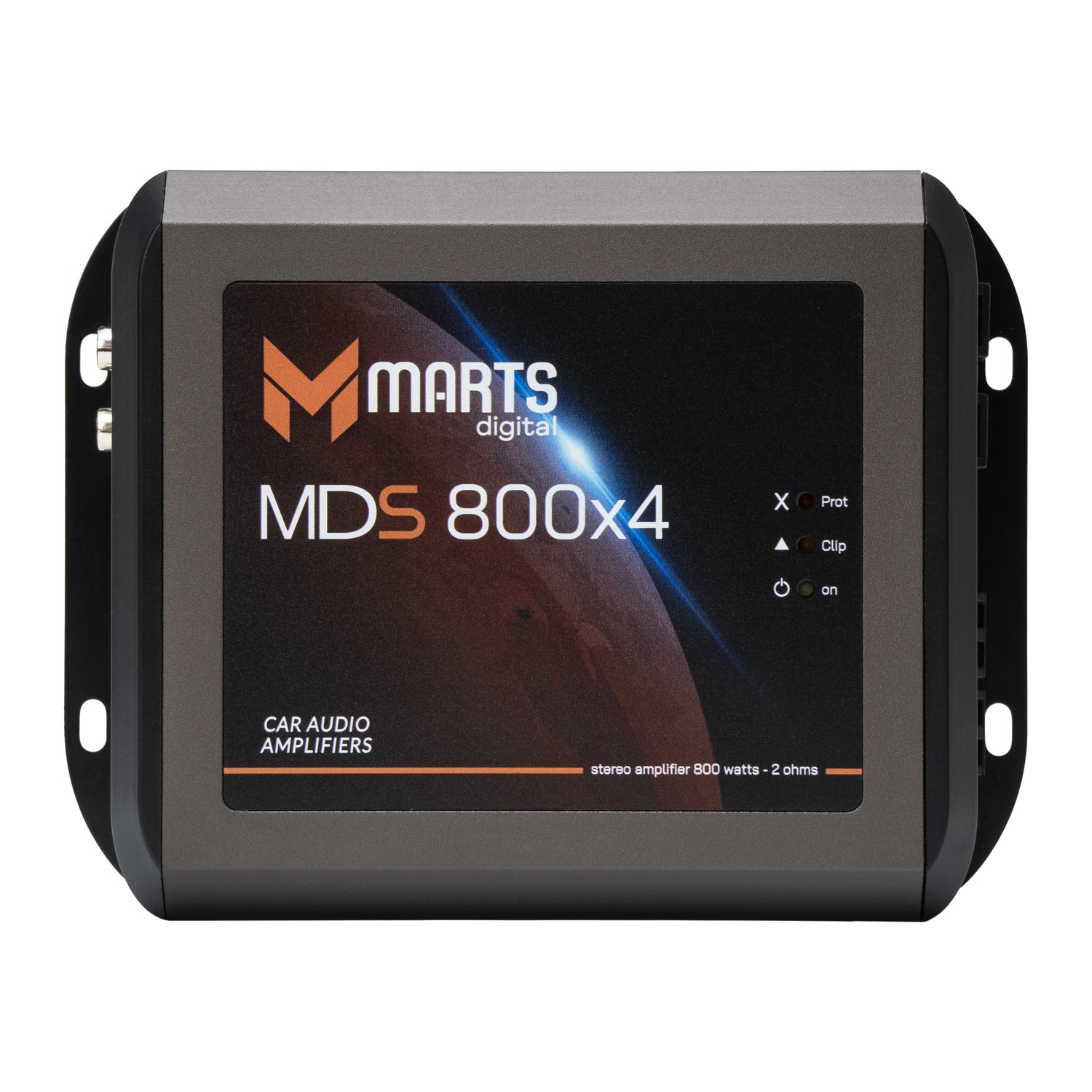

MARTS MDS 800X4 2 OHM 4 CHANNEL AMPLIFIER

Technical Features

Minimum Output Impedance: 2 Ohm Number of Channels: 4

Output Power @ 14.4VDC: 2 Ohms: 200W RMS 4 Ohms: 120W RMS 8 Ohms: —

Input Sensitivity (Level 100%): 400mV–7V Signal‑to‑Noise Ratio: >90dB Frequency Response (Full Range): 1Hz – 40kHz (‑3dB)

Crossover: HPF: 25Hz – 7.1kHz (‑3dB) LPF: 20Hz – 7.1kHz (‑3dB)

Bass Boost Frequency: —

Efficiency: 91% Input Impedance: 10K Ohms

Protection System: Short‑circuit output Short on output compared to GND Low impedance at output Low/high supply voltage Thermal protection

Minimum Supply Voltage: 9VDC Maximum Supply Voltage: 16VDC Idle Consumption: 1A Musical Consumption @ 14.4VDC: 60A Rated Power Consumption @ 14.4VDC: 70A

Dimensions (W x H x L): 137 x 49 x 186 mm (5.39" x 1.93" x 7.32")

Weight: 1.7 kg (3.75 lb)
