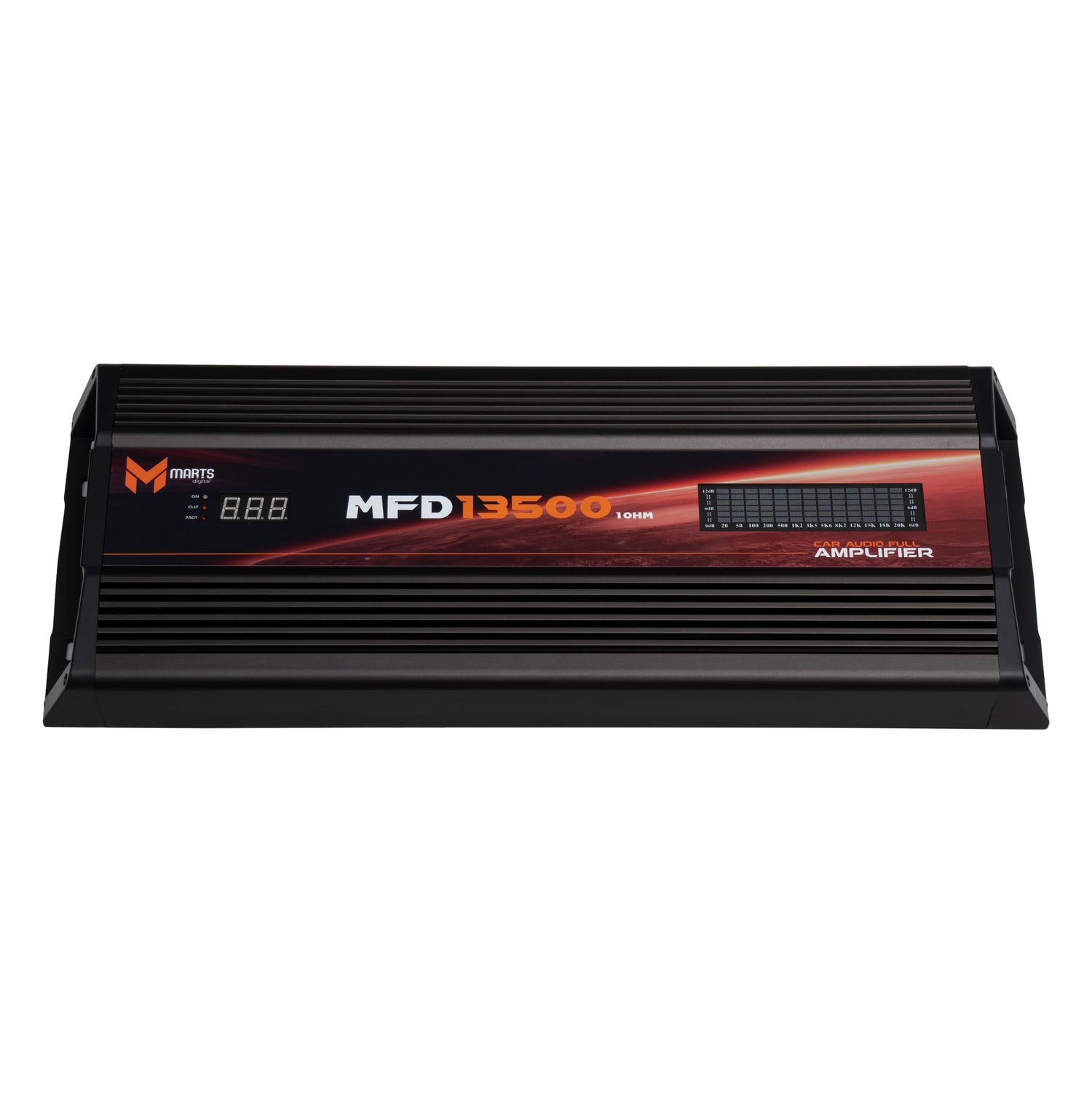

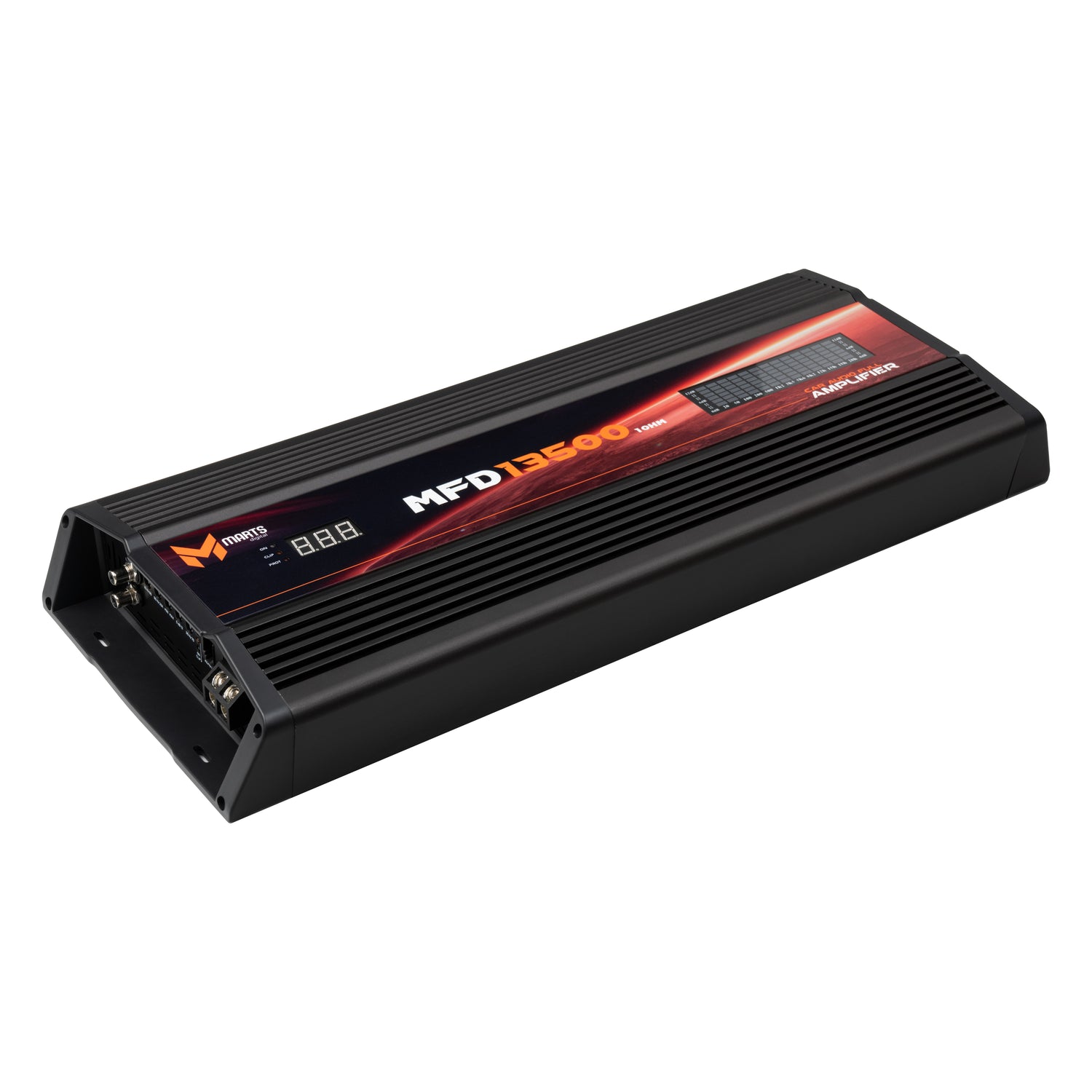

MARTS MFD 13500 1 CHANNEL AMPLIFIER

Technical Features

Minimum Output Impedance: 1 Ohm Number of Channels: 1

Output Power @ 12.6VDC: 1 Ohm: 12890W RMS 2 Ohms: 6249W RMS 4 Ohms: 3230W RMS 8 Ohms: —

Input Sensitivity (Level 100%): 400mV–4V Signal-to-Noise Ratio: >90dB Frequency Response (Full Range): 10Hz–20kHz (±3dB)

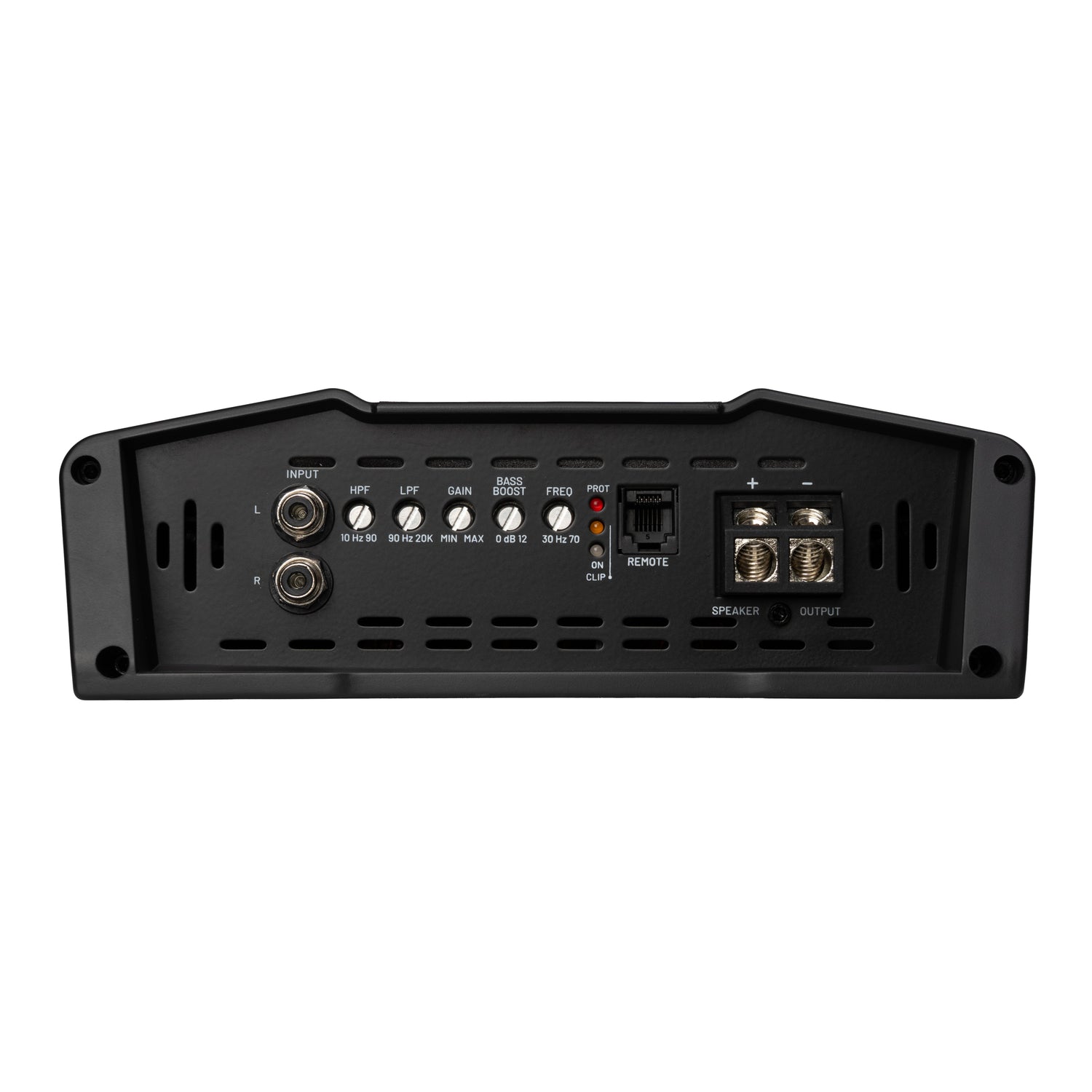

Crossover: HPF: 10Hz–90Hz (±12dB/8°) Variable LPF: 90Hz–18kHz (±12dB/8°) Variable

Bass Boost: Frequency: 30Hz–70Hz Boost: 0–10dB (50Hz)

Efficiency: 79% Input Impedance: 15K Ohms

Protection System: Short-circuit to output Short on output compared to GND Low impedance at output Low/high supply voltage Thermal protection

Minimum Supply Voltage: 9VDC Maximum Supply Voltage: 17VDC Idle Consumption: 3A Musical Consumption @ 12.6VDC: 1000A Rated Power Consumption: 1100A

Dimensions (W x H x L): 471 x 69 x 210 mm (18.54" x 2.72" x 8.27")
