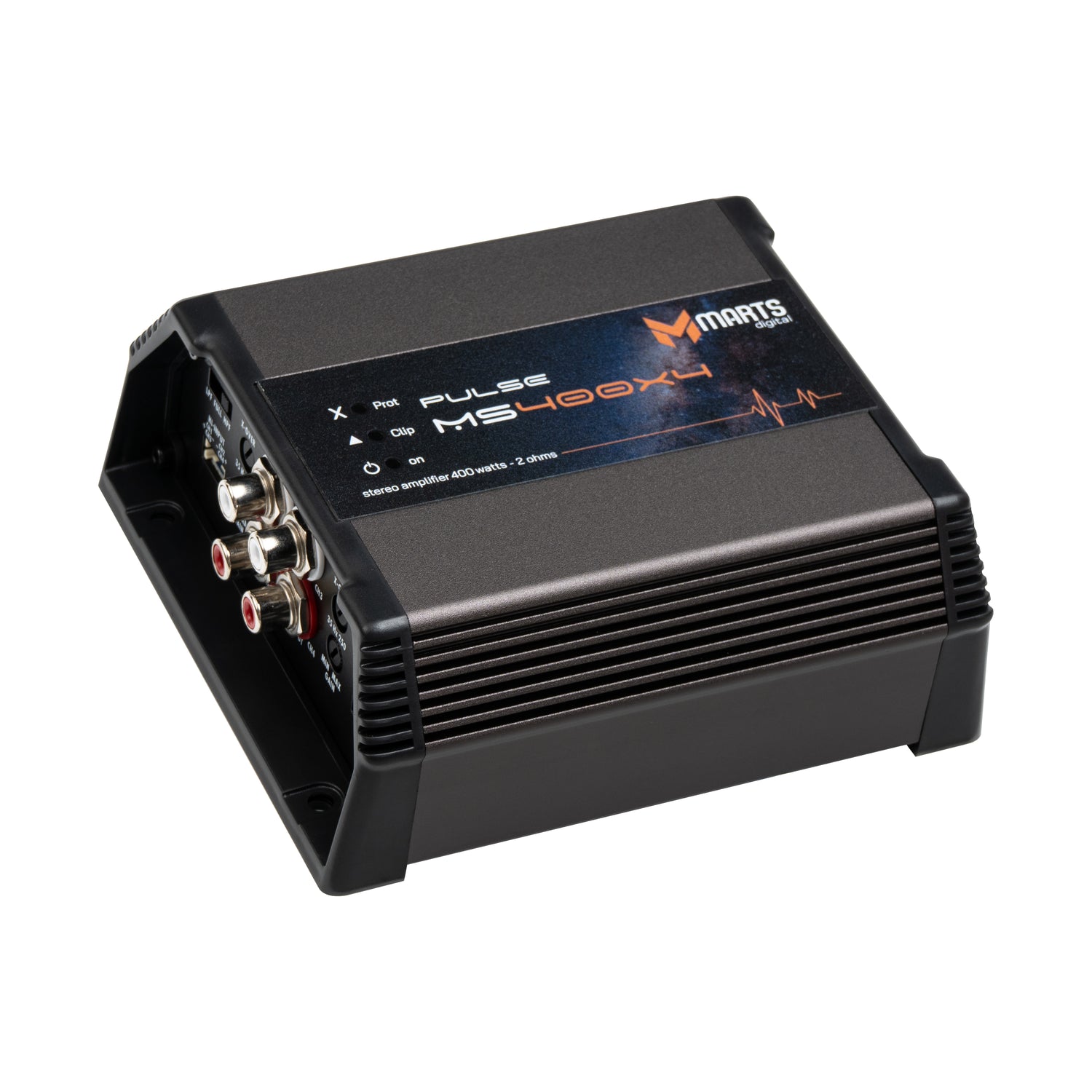

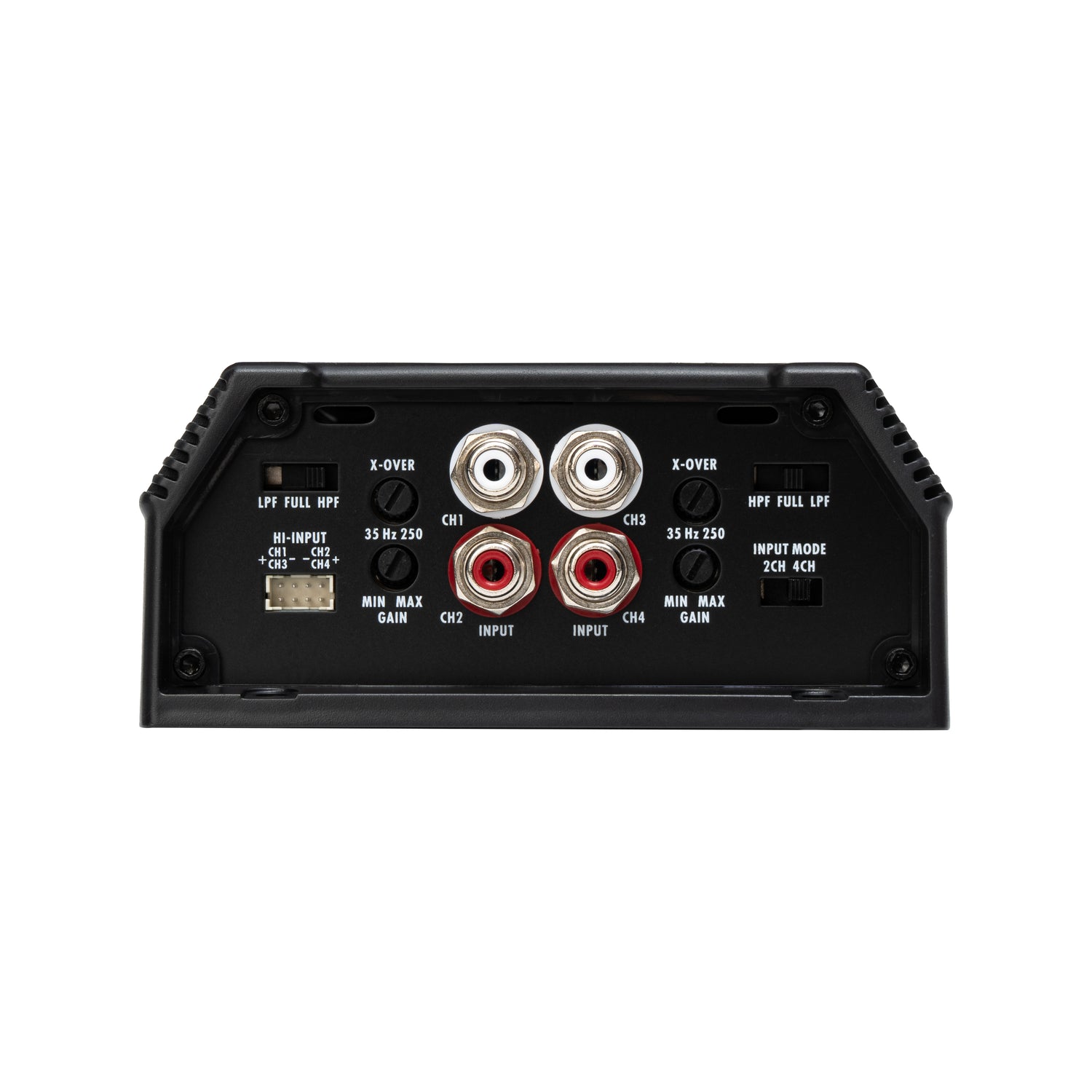

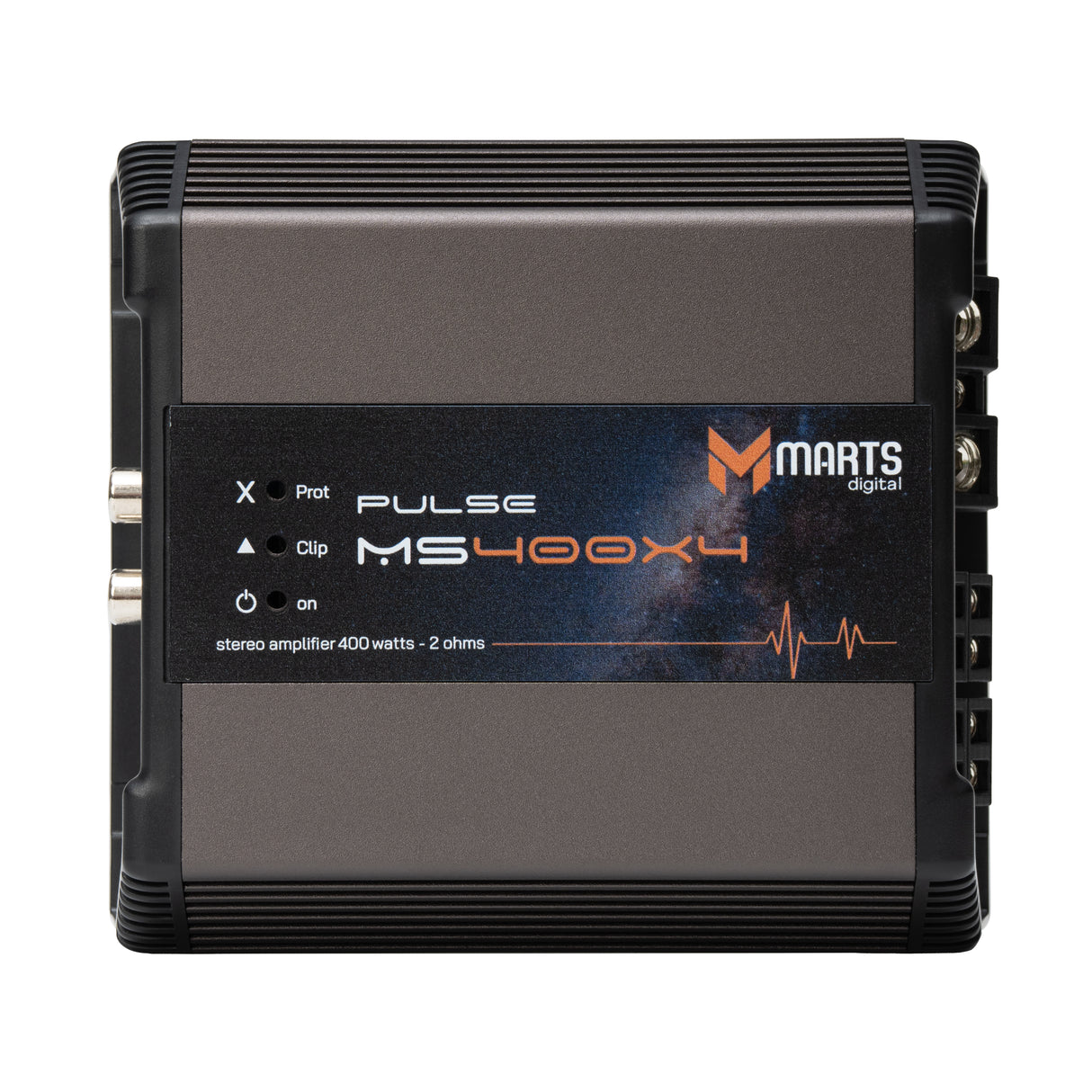

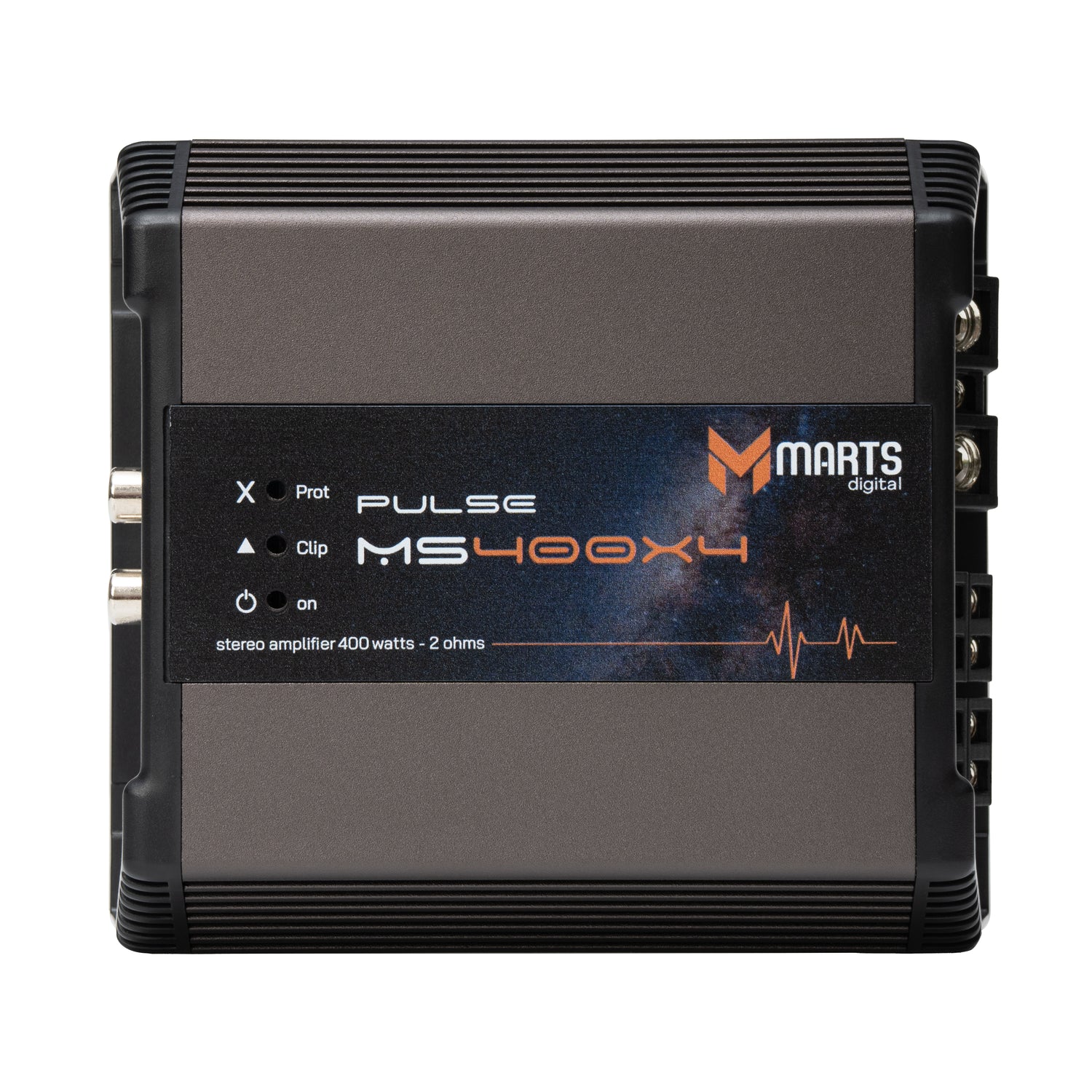

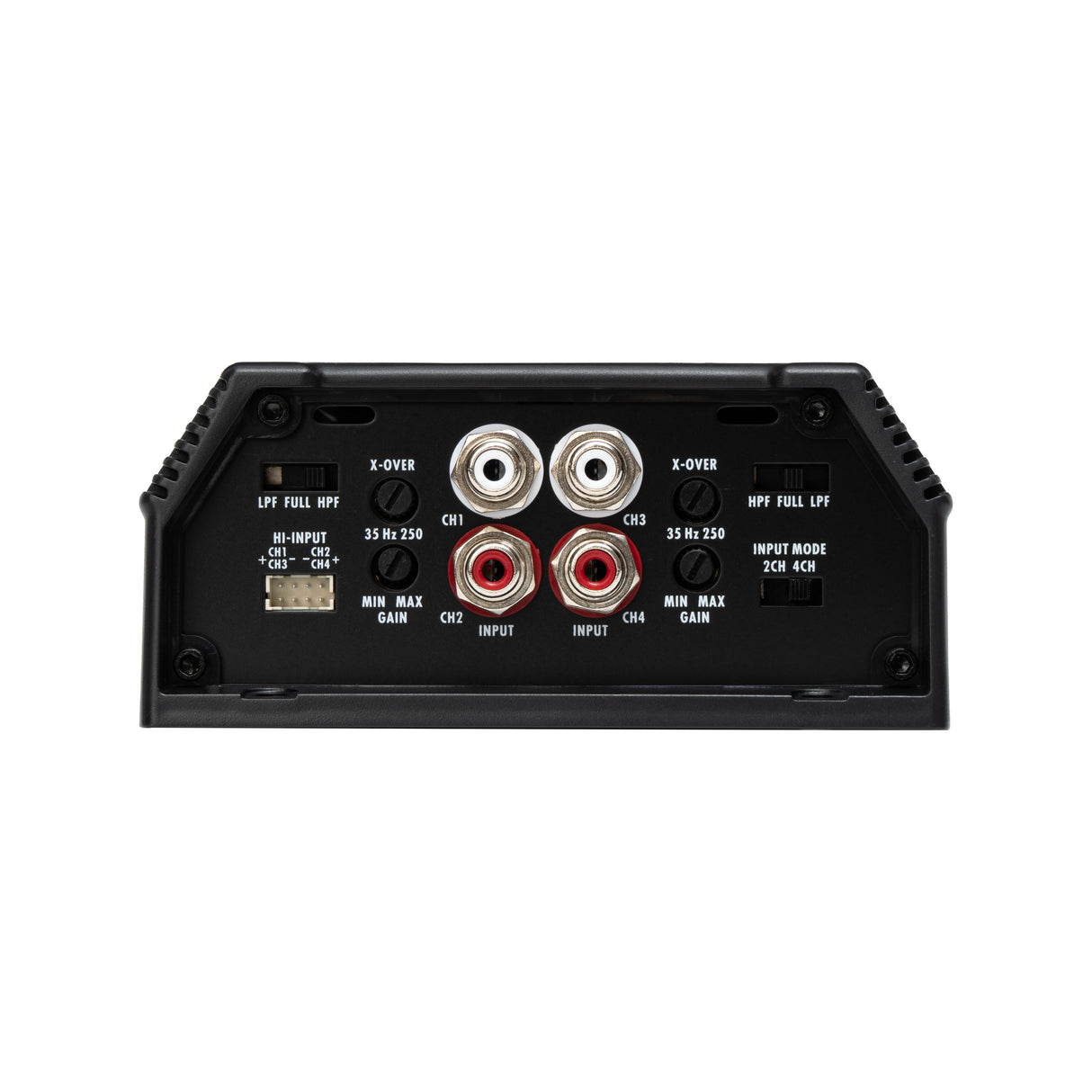

MARTS PULSE MS 400X4 2 OHM FULL RANGE 4 CHANNEL AMPLIFIER

Technical Features

Minimum Output Impedance: 2 Ohm

Number of Channels: 4

Output Power @ 14.4VDC

• 2 Ohms: 100W RMS x4
• 4 Ohms: 50W RMS x4

Input Sensitivity (Level 100%): 400mV – 6V

Signal-to-Noise Ratio: >90dB

Frequency Response (Full Range): 10Hz – 20kHz (-3dB)

Crossover

High Pass Filter (HPF): 35Hz – 250Hz (-3dB)

Low Pass Filter (LPF): 35Hz – 250Hz (-3dB)

Bass Boost

Efficiency: 91%

Input Impedance: 20k Ohms

Protection System

• Short-Circuit to Output
• Short on Output Compared to GND
• Low Output Impedance Protection
• Low/High Supply Voltage Protection
• Thermal Protection

Minimum Supply Voltage: 9VDC

Maximum Supply Voltage: 16VDC

Idle Current Consumption: 0.9A

Musical Current Consumption @ 14.4VDC: 30A

Rated Power Consumption @ 14.4VDC: 74A

Dimensions (W × H × L):
120 × 54 × 135 mm (4.75" × 2.13" × 5.31")

Weight: Not specified
