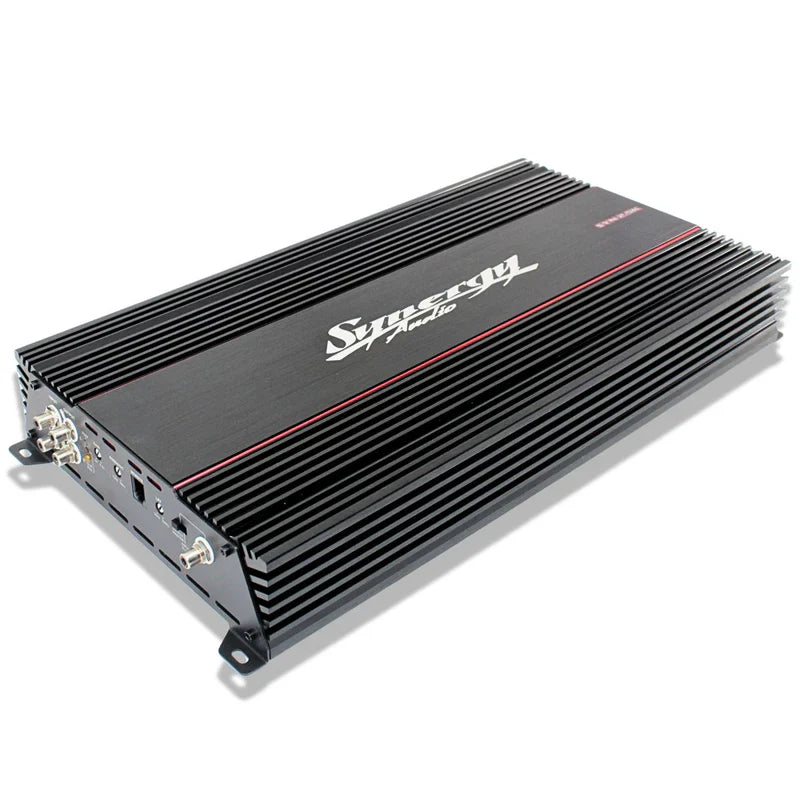

Synergy SYN Series 2,500 Watt Monoblock Amplifier

• PREMIUM KOREAN-ENGINEERED MONOBLOCK POWER The Synergy Mobile Audio SYN 2.5K mono Class D amplifier features high-end circuit design and premium internal components for reliable, high-output bass performance in demanding car audio systems.
• AUDIOPHILE-GRADE INTERNAL COMPONENTS Built with Samyoung capacitors, Texas Instruments op-amps and ICs, German WIMA film capacitors, and Fairchild chipsets to ensure low distortion, strong efficiency, and long-term durability.
• POWERFUL REAL-WORLD RMS OUTPUT Delivers 2500W RMS at 1 ohm @ 14.4V, 1700W RMS at 2 ohms, and up to 4000W RMS at 16V, making it ideal for subwoofer systems in daily drivers, demo vehicles, and SPL competition builds.
• FULL ACTIVE BASS CONTROL Features adjustable subsonic (10Hz–50Hz) and low-pass (35Hz–250Hz) filters with high damping (>200) for tight, controlled bass reproduction across a wide range of enclosures and applications.
• OVERBUILT CONNECTIONS & THERMAL DESIGN Equipped with 0-gauge power and ground inputs, nickel-plated 8-gauge speaker outputs, locking Tiffany RCA connections, dual power transformers, and a high-mass aluminum heat sink for stable operation under heavy load.

Synergy Audio SYN 2.5K Mono 2500 Watts 1Ohm Class D Vehicle Amplifier SYN2.5K

This Listing Includes:

• (1) Synergy Audio Mono Class D Amplifier SYN 2.5K
• Remote gain control with power & clipping indicators
• Owner’s manual

The Synergy Mobile Audio SYN Series amplifiers are engineered with high-end circuit design, precision manufacturing, and premium component selection to deliver reliable, high-output performance in demanding car audio systems.

The SYN 2.5K mono amplifier is built using South Korean Samyoung capacitors, Texas Instruments op-amps and ICs, German-manufactured WIMA film and filter capacitors, and Fairchild chipsets, ensuring excellent signal integrity, efficiency, and long-term durability.

Designed for daily drivers, ground-pounding demo builds, and SPL competition systems, the SYN 2.5K delivers powerful, controlled bass output with full active filtering and 16V capability for upgraded electrical systems.

Features

• Adopt high-efficiency toroidal transformer design
• Adopt high-efficiency class D design
• Multiple ways of protection (Overcurrent, thermal, high/low voltage protection)
• Stable operation with 1 ohm load
• FR4 double-sided PCB design
• With master/slave switching function
• With lowpass wire control function
• High-end circuit design, engineering, and manufacturing
• Premium internal components for long-term reliability
• Full active bass control for precise tuning
• 16V capable for competition and upgraded electrical systems
• Overbuilt power supply and output section
• Nickel-plated locking Tiffany RCA inputs and outputs
• High-mass aluminum heat sink for efficient thermal dissipation
• Intelligent multi-way protection circuitry

Specifications:

• 2500W @ 1 Ohm @ 14.4V
• 1700W @ 2 Ohm @ 14.4V
• 950W @ 4 Ohm @ 14.4V
• 4000W @ 1 Ohm @ 16V
• Frequency Response: 10Hz – 250Hz
• Signal-to-Noise Ratio: >85dB
• Damping Factor: >200
• Subsonic Filter: 10Hz – 50Hz
• Low-Pass Filter: 35Hz – 250Hz
• Input Sensitivity: 6V – 200mV
• THD @ 4Ohm: <0.1%
• Working Voltage: 9v - 16v
• Fuse rating: 200 A
• 0 Gauge power and ground terminals
• Nickel-plated 8-gauge speaker outputs
• (2) high-current power transformers
• Heavy-duty 2oz double-sided PCB with thick solid copper traces
• Custom high-mass, thermally optimized aluminum heat sink

Dimensions:

• Length: 17.24"
• Width: 9.45"
• Height: 2.44"
